MJVO-3

   Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
MJVO-3

More Views

Get CAD files:

Details

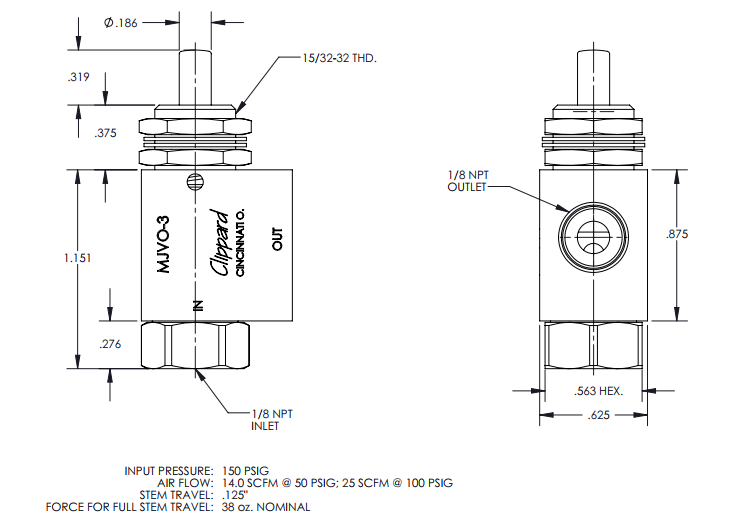

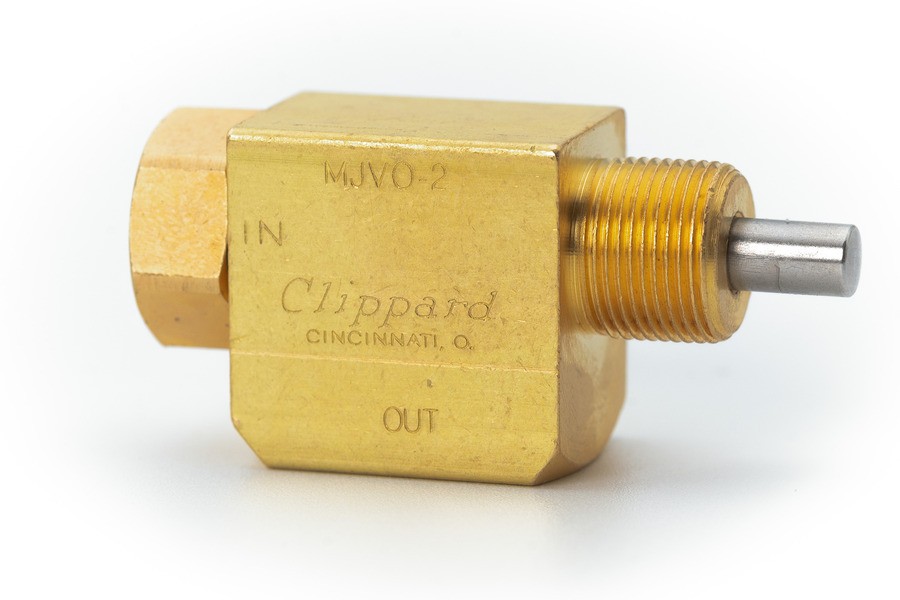

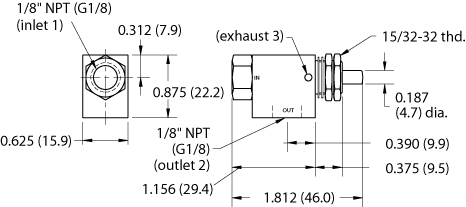

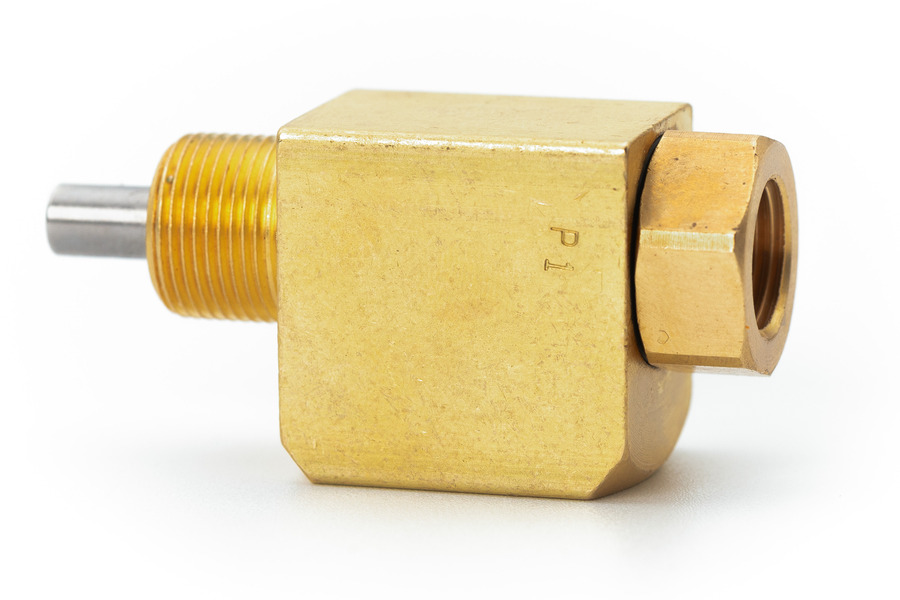

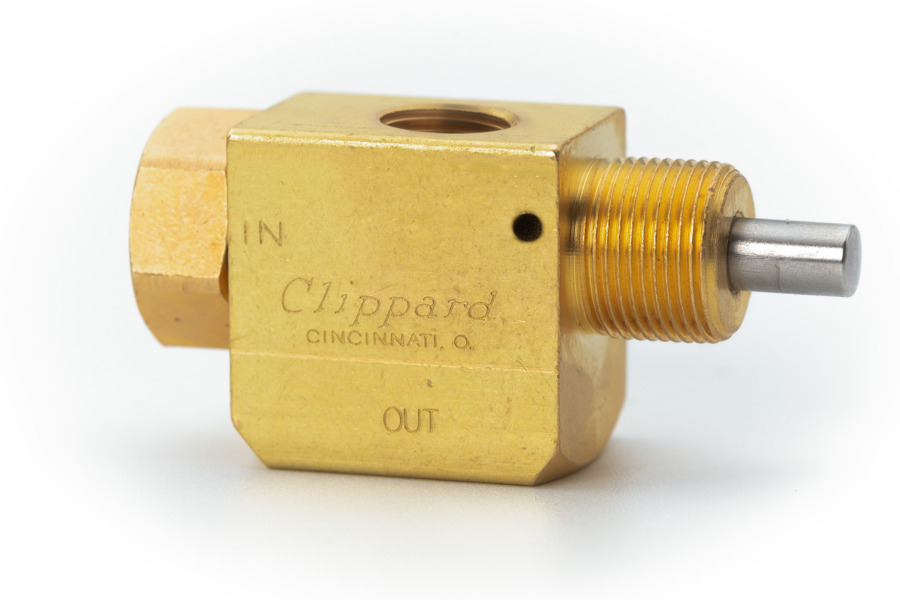

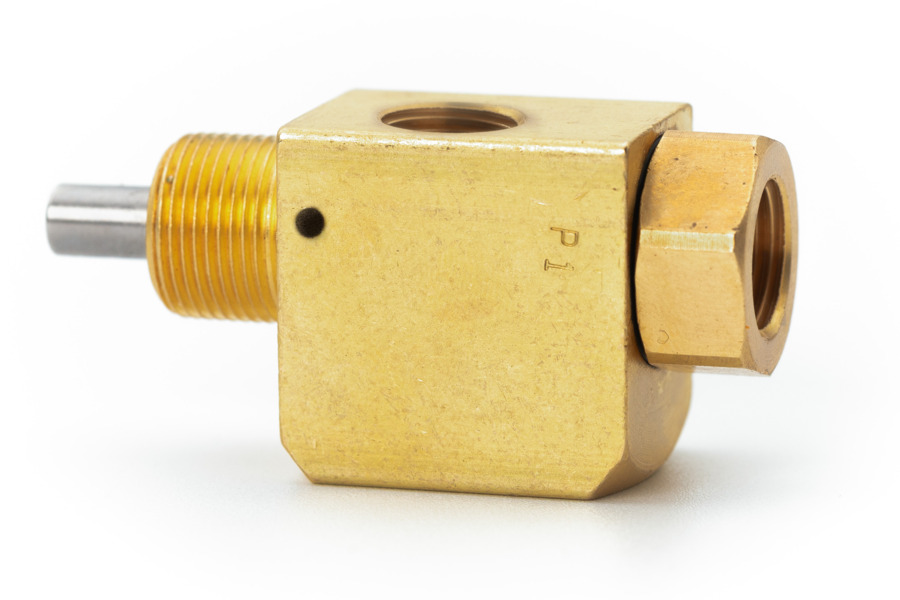

3-Way Valve, Normally-Open, 1/8" NPT
See Catalog: Page 114

Additional Information

Air Flow200 l/min @ 50 psig; 340 l/min @ 100 psig
DocumentationCA Prop. 65
Function3-Way
Included Item(s)Nut & Lockwashers
Input PSI150 psig
Material, BodyBrass, ENP Optional
Material, SealsNitrile, FKM Optional
Material, Spring & StemStainless Steel
MediumAir, Water, Oil or Compatible Fluids
Mount15/32-32 Thread.
Operating Temperature Range32 to 230°F (0 to 110°C)
PortNormally-Open
Port, Inlet1/8" NPT
Port, Outlet1/8" NPT
Stem Travel1/8"
UnitImperial
Weight0.1700
