IND-3P-RD

   Product will ship within 1 to 2 business days
IND-3P-RD

More Views

Get CAD files:

Details

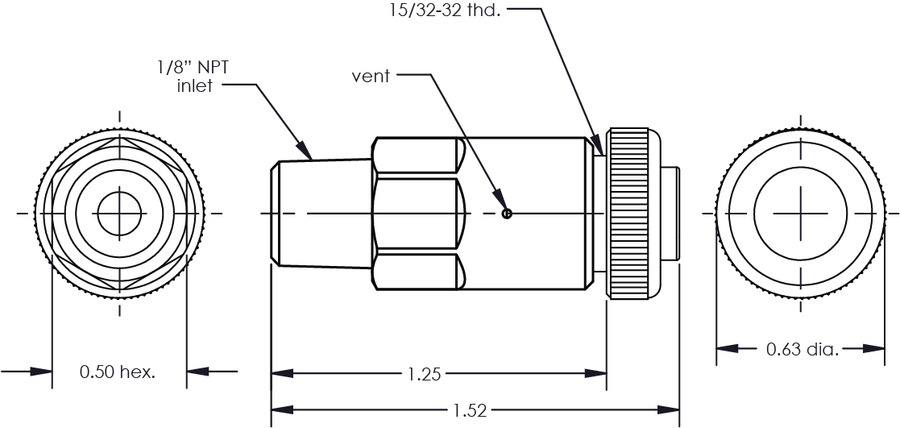

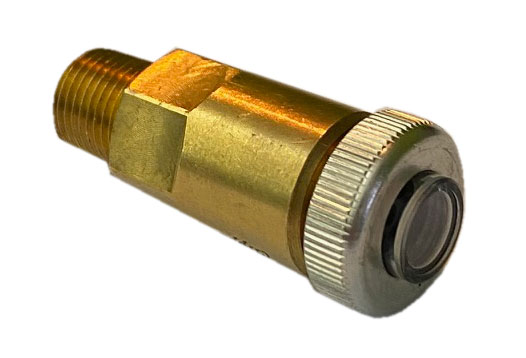

Air Indicator, Red 1/8” Male NPT

Notes

Nut & Lock Washer Furnished. Max. panel thickness 3/16". Minimum Actuation Pressure: 15 psig approx.
See Catalog: Page 168

Uses

Plunger type (when extended 7-pin color display signals "on")

Additional Information

Input PSI150 psig
MediumAir Only
MountDirect into 1/8" NPT hole.
Response TimeApprox. 10 ms @ 50 psig
