IND-3-GN

   Product will ship within 5 business days
IND-3-GN

More Views

Get CAD files:

Details

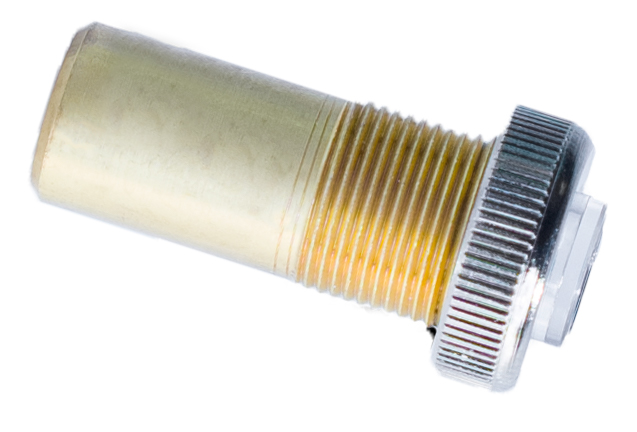

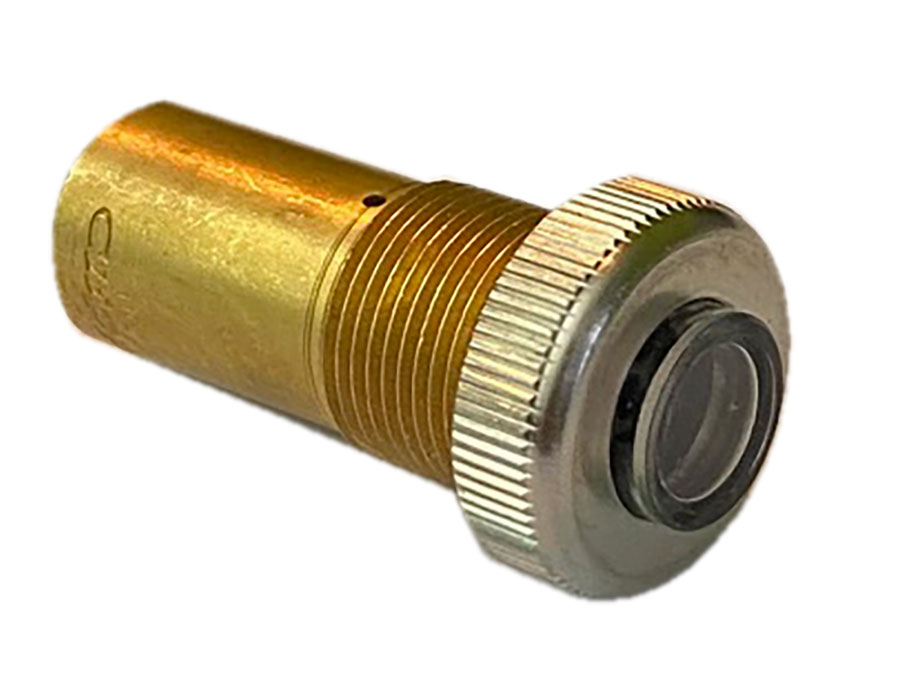

Pressure Indicator, Green, #10-32

Notes

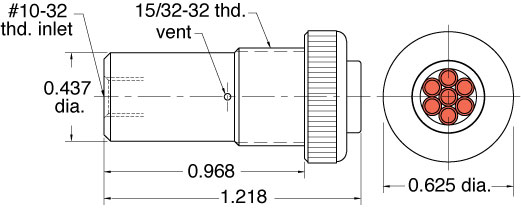

Nut & Lock Washer Furnished. Max. panel thickness 3/16". Minimum Actuation Pressure: 15 psig approx.
See Catalog: Page 168

Uses

Plunger type (when extended 7-pin color display signals "on")

Additional Information

Input PSI15 to 150 psig
MediumAir Only
MountPanel mount in hole. #15/32-32
Response TimeApprox. 10 ms @ 50 psig
Weight0.0700
