E3L15F-4W012

More Views

E3L15F-4W012

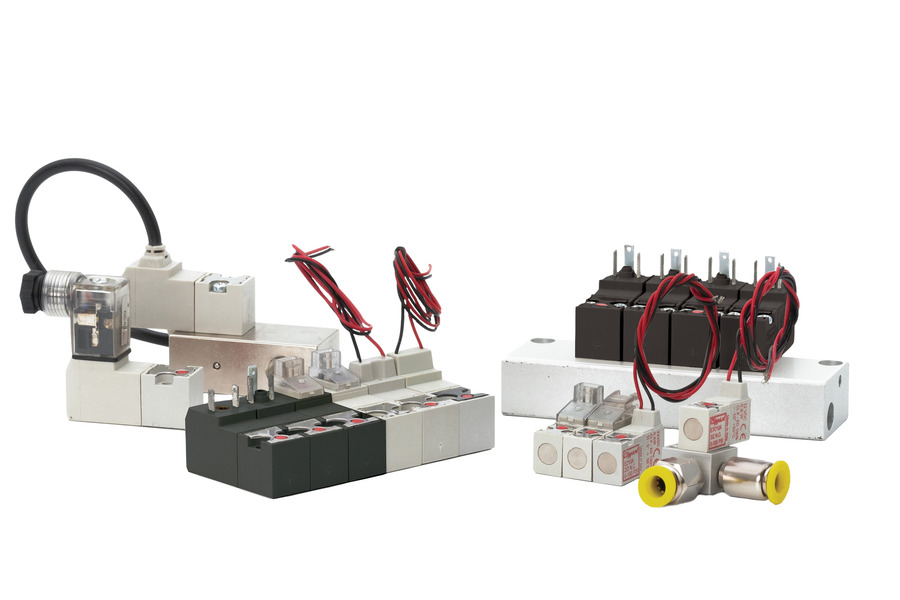

Offered in both Normally-Open or Normally-Closed models, these 2-way and 3-way valves are perfect for small areas where compact electronically-controlled pneumatics are needed.

This series has a high strength, engineered light-weight glass filled nylon body, along with stainless steel, copper and Buna-N, making it suitable for a broad range of applications. With exceptional life and reliability this is the perfect sub-miniature valve for tomorrow's needs in a wide variety of industries.

Estimated to ship within 1 to 2 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • 2-Way or 3-Way operation
  • Detachable coil and body
  • Variety of circuit features & manifold options
  • RoHS compliant
  • Multiple connectors
  • Available LED for confirmation of operation
  • Highly visible manual override provides valve actuation without power
  • High durability and corrosion-resistant glass filled nylon housing
  • One piece gasket for manifold mount
  • Encapsulated low wattage coils

    Standard Series Direct operating valves well-suited for single- or multiple-valve mounting in small spaces

    Latching Series A short pulse of current shifts this valve which "latches"indefinitely; another pulse returns the valve.

    High Flow 2-Way Series Specialty series for high flow applications.

    • 2D DrawingsValves, Plastic Manifolds, Aluminum Manifolds
    Connection24 AWG Wire Leads, 11.8"
    Connector Wire3-Wire Molded Cord, 24 AWG, 300 mm length, 4.5 mm external jacket; tinned copper wires; silicone jacket and conductor insulation.
    ConnectorsConnectors
    DocumentationCE, RoHS, REACH (Download)
    Function3-Way Latching
    Length1.08
    ManifoldsPlastic Barb, Aluminum
    MaterialsStainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
    Max. Flow85 l/min @ 100 psig (7 bar)
    MediumAir, Water, Gas & Compatible Fluids
    Mount2 M3 Screws
    Operating Temperature Range23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
    Product Line Brochure10 & 15 mm Valves
    Response Time10 ms nominal
    Voltage12 VDC
    Voltage Tolerance±10%
    Wattage4.0 Watts
    Weight (lbs.)0.0850
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    A minimum order of 250 valves is required.
