E215D-1C024

More Views

E215D-1C024

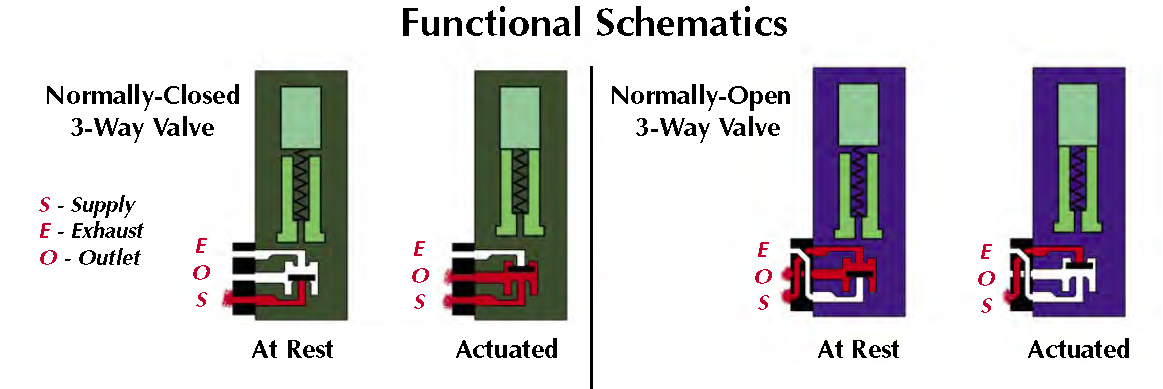

Offered in both Normally-Open or Normally-Closed models, these 2-way and 3-way valves are perfect for small areas where compact electronically-controlled pneumatics are needed.

This series has a high strength, engineered light-weight glass filled nylon body, along with stainless steel, copper and Buna-N, making it suitable for a broad range of applications. With exceptional life and reliability this is the perfect sub-miniature valve for tomorrow's needs in a wide variety of industries.

Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • 2-Way or 3-Way operation
  • Detachable coil and body
  • Variety of circuit features & manifold options
  • RoHS compliant
  • Multiple connectors
  • Available LED for confirmation of operation
  • Highly visible manual override provides valve actuation without power
  • High durability and corrosion-resistant glass filled nylon housing
  • One piece gasket for manifold mount
  • Encapsulated low wattage coils

    Standard Series Direct operating valves well-suited for single- or multiple-valve mounting in small spaces

    Latching Series A short pulse of current shifts this valve which "latches"indefinitely; another pulse returns the valve.

    High Flow 2-Way Series Specialty series for high flow applications.

    • 2D DrawingsValves, Plastic Manifolds, ENP Brass Manifolds
    AccessoriesConnector Wire with cable: C2A-RB300 (30cm), C2A-RB500 (50cm), C2A-RB1000 (1m)
    Connection2-Pin In-Line Connector
    Connector WireClippard p/n 28139 plug with Molex terminal insert #50212-8000
    ConnectorsConnectors
    DocumentationCE, RoHS, REACH (Download)
    Function2-Way Normally-Closed
    ManifoldsPlastic Barb, Aluminum
    MaterialsStainless steel core & springs, nylon body, FKM dynamic seals, and Nitrile gasket & static seals. FKM gasket & static seals available
    Max. Flow44 l/min @ 145 psig (10 bar)
    MediumAir, Water, Gas or Compatible Fluids
    Mount2 M3 screws
    Operating Temperature Range23 to 122°F (-5 to 50°C) When below 32°F, must use clean, dry air.
    Product Line Brochure10 & 15 mm Valves
    Response Time8 ms nominal
    Voltage24 VDC
    Voltage Tolerance±10%
    Wattage1.0 Watt
    Weight (lbs.)0.0850
