MFC & JFC Pneumatic Adjustable Flow Control Valves

Clippard offers five models of adjustable flow controls with #10-32 through 3/8" NPT ports with many connection and adjustment options. They feature a combination needle and check valve that controls flow in one direction and allows free flow in the opposite direction. They are an ideal valve for use with a cylinder, providing a slow extend stroke while allowing a fast retract stroke. The chart illustrates the flow versus the number of needle adjustments turns.

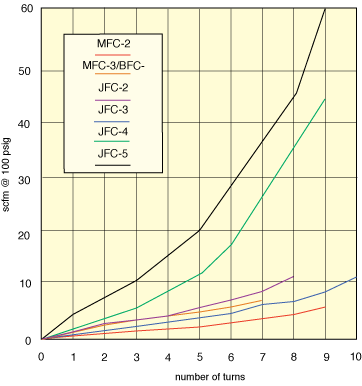

Clippard Flow Controls: Flow vs. Adjustment Turns Chart

Materials:
Aluminum, anodized aluminum,
or brass body; nitrile seals

Input Pressure:
150 psig max. (MFC-2: 300 psig)

Pressure to Open:
Cracks at approx. 2 psig

Mounting: Direct (MFC-2: in-line)

Special configurations are available. Contact Clippard for more information.

  Part No. Port Adjustment

Clippard MFC-2 Brass Flow Control MFC-2 #10-32F Knurled Knob


Clippard MFC-3AK Flow Control MFC-3A
MFC-3AK
MFC-3AR
#10-32 Screwdriver Slot
Knurled Knob
Recessed Needle


Clippard MFC-3B Flow Control MFC-3B
MFC-3BK
MFC-3BR
#10-32 Screwdriver Slot
Knurled Knob
Recessed Needle

Clippard JFC-2A Flow Control JFC-2A
JFC-3A
JFC-3BR
1/8" NPT Knurled Knob
Knurled Knob
Recessed Needle

Clippard JFC-3BR JFC-2B
JFC-3B
JFC-3BR
1/8" NPT Screwdriver Slot
Knurled Knob
Recessed Needle

Clippard JFC-4K Flow Control JFC-4K
JFC-4R
#10-32 Knurled Knob
Recessed Needle

Clippard JFC-5K Flow Control JFC-5K
JFC-5R
#10-32 Knurled Knob
Recessed Needle
