JFC-3B

More Views

JFC-3B

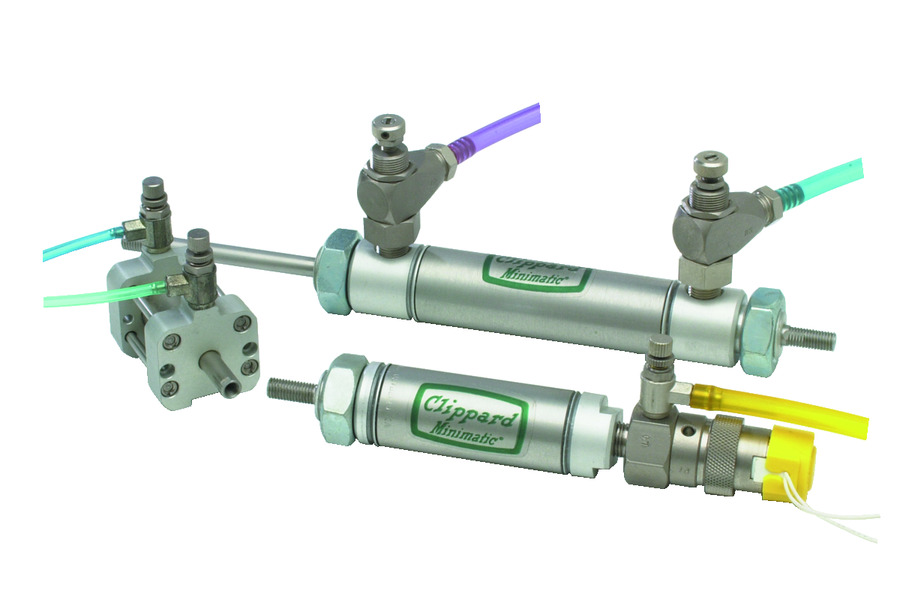

These combination needle and check valve flow controls are typically used to control air flow from air cylinders, thereby controlling the speed at which the piston strokes, either while extending or retracting, depending on their location in the circuit.

Flow control valves allow free flow from the inlet to the outlet past the needle and check valve. In reverse flow, from the outlet to the inlet, the check valve is sealed and the flow must now pass through the metered passage controlled by the tapered adjustment needle.

Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Pre-applied sealant on male NPT outlet port
  • Accessible hex wrench flats on stem simplifies installation

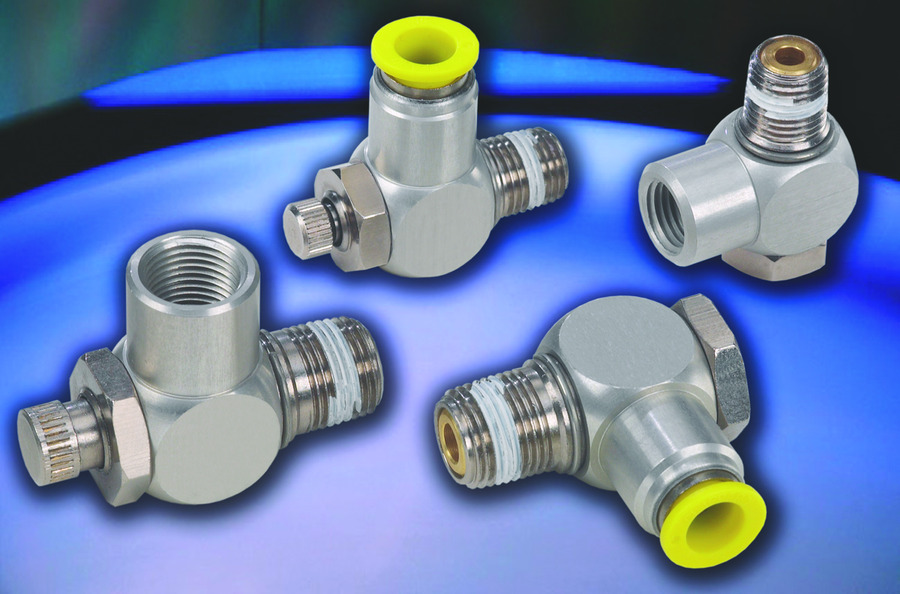

  • Inlet is a swivel port that can be rotated 360° for optimum port alignment
  • Models available with flow adjustment by recessed screwdriver slot or knurled knob
  • Captivated needle cannot be adjusted out of the stem
  • A super fine 48 pitch needle thread provides the finest adjustment available
  • Built of corrosion-resistant materials for long life

  • AdjustmentKnurled Knob

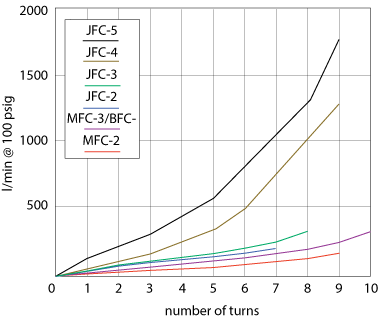

    Air Flow310 l/min @ 100 psig (adjustable)

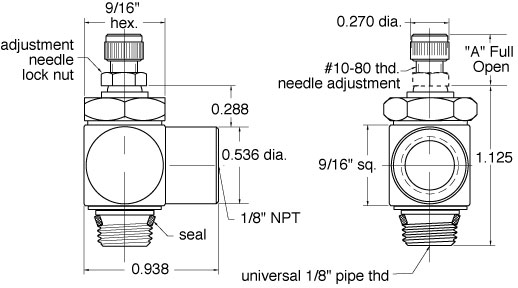

    Flow Control Mount (Inlet/Outlet)1/8" NPT/1/8" NPT F. Side
    Input PSI150 psig max.
    Material, SealsNitrile
    MediumAir, Water or Oil

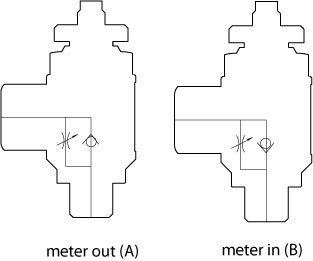

    Meter Out / Meter InMeter In
    MountPanel or In-Line
    Pressure to OpenCracks at approximately 2 psig
    Product Line BrochureMechanical Valves
    SealsNitrile
    Temperature Range32 to 230°F
    Weight0.1300
