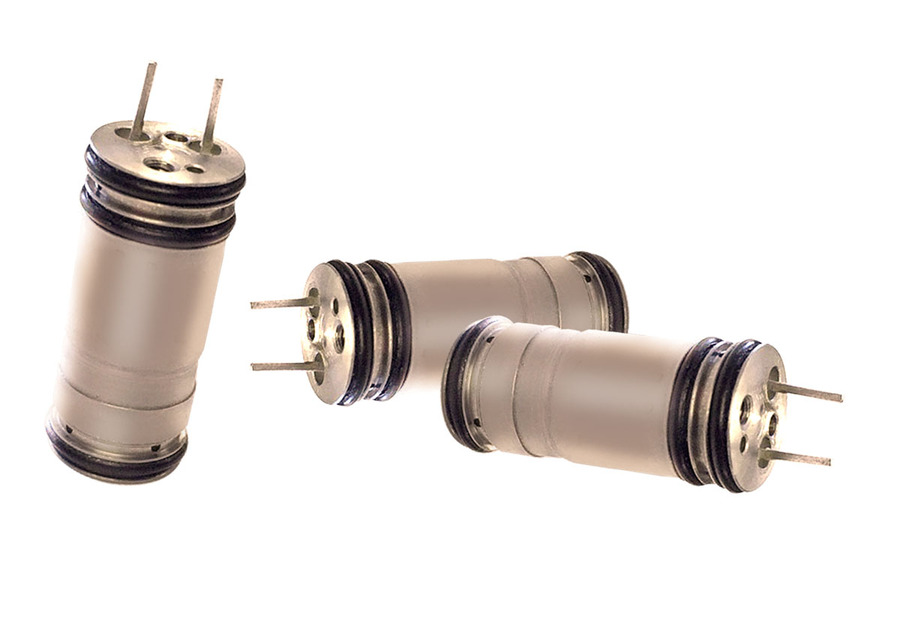

8 mm 3-Way Electronic Valves

More Views

Configure ST3

These 8 mm 3-Way direct actuating valves offer an extremely fast response time for accurate dosing of minute volumes with the same long life you expect from the original Clippard EV line of electronic valves, now in a 8 mm cartridge package. The valve was designed with a unique patented valving principle using Clippard's robust stainless steel "spider", with only one moving part that travels less than 0.007".

Due to very low moving weights, they are extremely quiet and emit very low vibration. Subminiature size and low energy consumption make them ideal for transportable and mobile systems, among others.

(Please select a valid configuration)

  • Operating Pressure: 0 to 29 psig; 0 to 145 psig
  • 1,000,000,000+ cycle life
  • Extremely small dead volume
  • Low vibration & noise
  • Fast response time
  • Exceptional repeatability & reliability
  • Compact & ideal for sub-assemblies
  • 100% tested

  • AccessoriesSingle Station Manifold STM-01 (#10-32), M-STM-01 (M5)
    Approx. Weight0.15 oz.
    ConnectionTerminal Pin
    Cycle Life>100,000,000
    Data SheetData Sheet
    Filtration10 micron (recommended)
    Function3-Way Fully-Ported
    Leak Rate1.0 sccm
    Material, BodyStainless Steel
    Material, SealsFKM
    Material, Spring302 Stainless Steel
    Material, Wetted302 Stainless Steel
    MediumAir, Water, Gas or Compatible Fluids
    Operating Pressure0 to 29 psig (0.039" Orifice)
    Operating Temperature Range32 to 122°F (0 to 50°C)
    Port, ExhaustNo Thread
    Port, InletNo Thread
    Port, OutletNo Thread
    Response Time<5 ms
    Wattage0.55 Watts
    Weight0.15 oz.
