FBV-3MPF

More Views

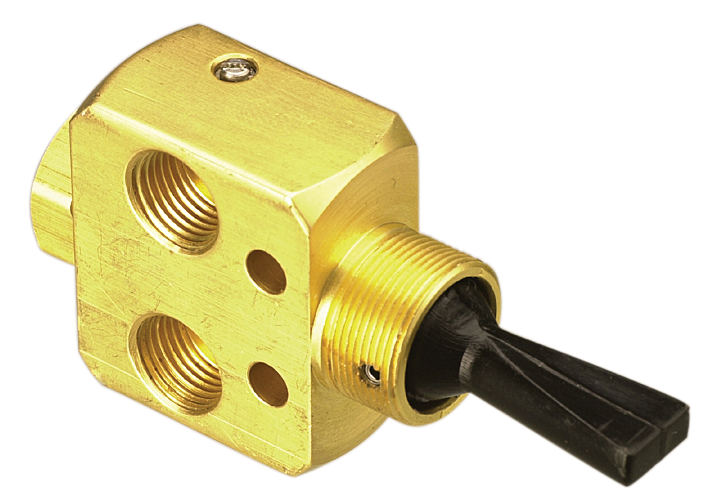

FBV-3MPF

Fill and Bleed Valves may be used to pressurize or "fill" a chamber or bladder by depressing the toggle in one direction and then de-pressurize or "bleed" that same chamber or bladder by depressing the toggle in the other direction. Toggling back and forth between the inlet and exhaust provides a fine adjustment of the required pressure in the chamber or bladder.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Adjustable or non-adjustable flow models available.
  • Adjustable models have built-in needle valves to control flow.
  • Non-adjustable models may be used as pressure selectors.
  • Compact design, simple to install in circuit.
  • Rugged Delrin® toggle for easy operation.
  • Mounting threads for panel or two holes for surface mounting.
  • Bright dipped brass construction for long life and corrosion-resistance.
  • Stainless steel springs, Delrin® toggle and spools—non-corrosive.
  • Nitrile seals; Viton® option available.

    • ActuationMomentary/Momentary
    Air Flow125 l/min @ 50 psig; 210 l/min @ 100 psig
    Data SheetData Sheet
    Force for Full Stem Travel8 oz. Nominal
    Included Item(s)Nut & Lockwashers
    Input PSI120 max
    Material, BodyBrass Body, Stainless Steel Stem & Spring
    Material, SealsNitrile
    Material, TogglePlastic
    MediumAir

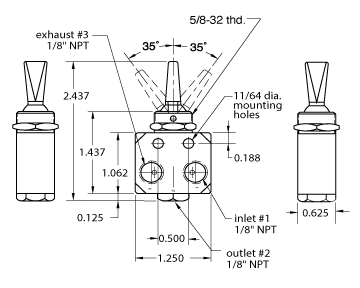

    Mount#5/8-32 Thread. Two 0.171" mounting holes in body
    Operating Pressure120 psig max. (8.3 bar)
    Ports1/8" NPT
    Product Line BrochureMechanical Valves
    Weight (lbs.)0.2100
