Electronic Manifold Cards

Configure EMC

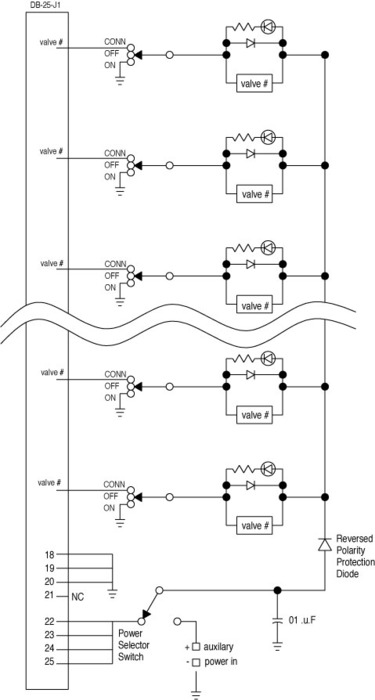

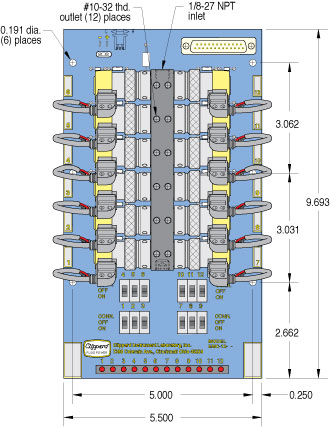

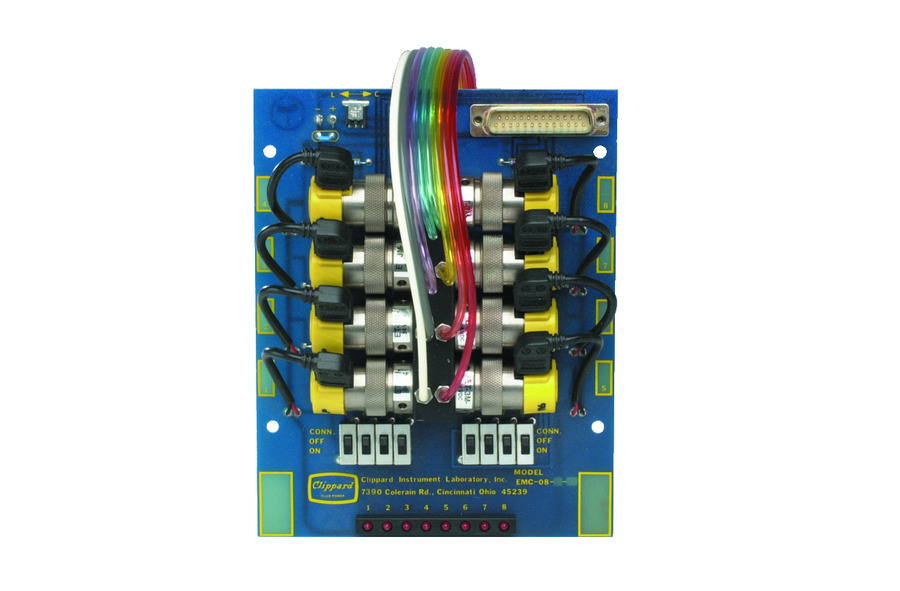

Direct low voltage DC signals from controllers, systems, computers or other sources to operate powerful pneumatic valves with a minimum of piping and hook-up. Cards contain 8 or 12 Clippard ET electronic Valves; fully-wired circuit board; plug-in with 25-pin connector, resistor, diode, LED and switch for each valve; and auxiliary power supply connection.
(Please select a valid configuration)

  • 8 or 12 Clippard ET interface valves
  • Manifold mount for single air supply
  • Circuit board fully wired
  • Instant plug-in with 25-pin connector
  • Resistor, diode, LED and switch for each valve
  • Auxiliary power supply connection

  • Number of Valves8
    Valve DetailsValve Details
    Voltage12 VDC
    Weight2.9100
