TVO-3M

   Product estimated to ship within 1 to 2 business days
TVO-3M

More Views

Get CAD files:

Details

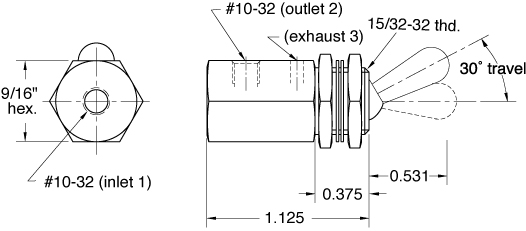

3-Way Toggle Valve, N-O, Momentary Closed Toggle, NP Steel Toggle, #10-32
See Catalog: Page 115

Additional Information

ActuationMomentary
Air Flow95 l/min @ 50 psig, 160 l/min @ 100 psig
DocumentationCA Prop. 65
Force to Rotate Toggle12 oz. nominal
Function3-Way
Input psig150 psig max.
MediumAir, Water or Oil
Mount15/32-32 Thread
Nut SuppliedNuts & Lockwashers Furnished
PortingNormally-Open
Ports#10-32
SealsNitrile
Temperature Range32 to 230°F
Toggle StyleNickel-Plated Steel
Weight0.1000
