TV-4DP

More Views

TV-4DP

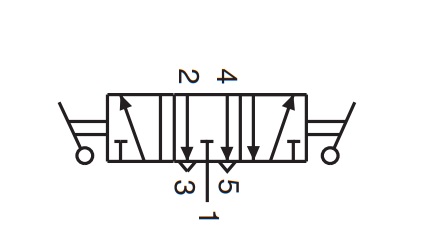

4-Way 3-position toggle valves with outlet ports open to atmoshere in the center position. The valve can be spring center, 3-position detent or the "DM" provides a detent on one side and spring return on the other side. The TV-DM model can be used on the momentary side as a "jog" or manual control, and with the detented side for an automatic or "run" mode.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Detented & Momentary models available
  • #10-32 & 1/8" NPT styles

    • ActuationDetented/Detented
    Air Flow125 l/min @ 50 psig; 210 l/min @ 100 psig
    Force to Rotate Toggle8 oz. nominal
    Included Item(s)Nut & Lockwashers
    Input PSI150 psig max.
    Material, BodyBrass
    Material, SpringStainless Steel
    Material, TogglePlastic
    Max PSI120 psig
    MediumAir
    Mount#5/8-32 thread
    Port1/8" NPT
    Product Line BrochureMechanical Valves
    SealsNitrile Std., FKM & Krytox Optional
    UnitImperial
    Weight (lbs.)0.1800
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    Brass body, Nitrile seals, Stainless Steel spring

    Uses

    Designed for use with Clippard manual, air-pilot, electric or mechanical actuators.
