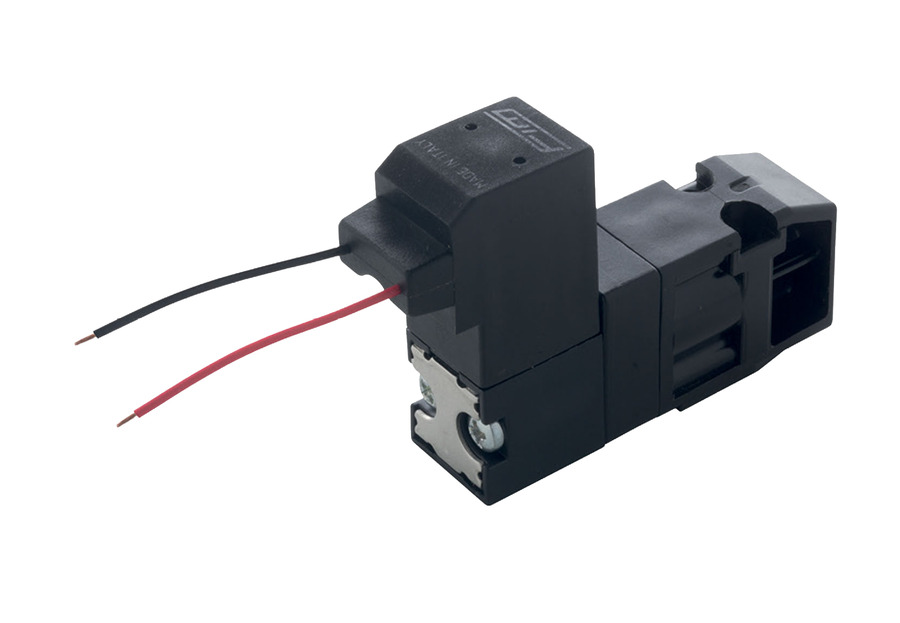

PHV15RNC-E315D-1W012

Clippard’s PHV Series booster valve delivers high performance in a compact, pressure-piloted design. Engineered for manifold mounting, it drives output flows up to 400 l/min at 100 psig with a fast 10 ms nominal response. Its low power consumption ensures efficient, cool-running operation—ideal for dense assemblies and space-constrained environments. The PHV integrates seamlessly into control systems across medical, packaging, and industrial automation applications, offering reliable actuation and high flow without compromising energy efficiency or speed.

Estimated to ship within 1 to 2 business days

Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.

Key Features:

Max flow: 400 l/min @ 100 psig

Fast actuation: 10 ms nominal response

Low power draw: Efficient pilot-driven actuation for cooler, longer-lasting systems

Compact footprint: Space-saving manifold mounting

Flexible options: 10 mm or 15 mm pilot sizes for footprint vs. max pressure balance

Durable construction: Nickel-plated brass, stainless steel, nylon body with high-quality seals

Applications:

Vacuum generation & venturi control

Blow-off & purge operations

Pressure switching & quick-vent systems

Packaging machinery & test stands

Fluidic routing and pneumatic control systems

Connector	Wires (standard for 15 mm)
Data Sheet	Technical Data Sheet
Function	3-way normally-closed
Manifolds	1/8" NPT, G1/8
Material, Body	Nickel-Plated Brass, Stainless Steel, Nylon
Material, Seals	FKM, polyurethane, NBR, HNBR
Max Flow	400 l/min @ 100 psig (7 bar)
Medium	Air
Operating Pressure Range	30 to 150 psig (2 to 20 bar)
Operating Temperature Range	30 to 122°F (-1 to 50˚C)
Orientation	Right (coil up, standard)
Pilot	15 mm
Ports	Manifold Mount
Response Time	10 ms nominal
Valve	15 mm, 0.032" (0.8 mm) Orifice
Voltage	12 VDC (standard)
Voltage Tolerance	±10%
Weight (lbs.)	0.1120
