PB-1-GN

More Views

PB-1-GN

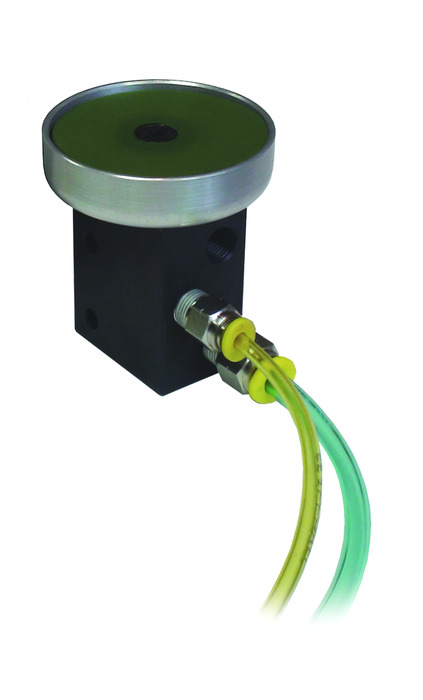

Standard or Low Force 3-Way Normally-Closed poppet valves available in red, green or black. Optional bracket kit provides additional mounting versatility.
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.
Button ColorGreen
DocumentationCA Prop. 65
Flow170 l/min @ 100 psig; 99 l/min @ 150 psig
Force to Actuate1.75 lbs. manual
Input PSI100 psig max.
Max PSI150 psig
MediumAir

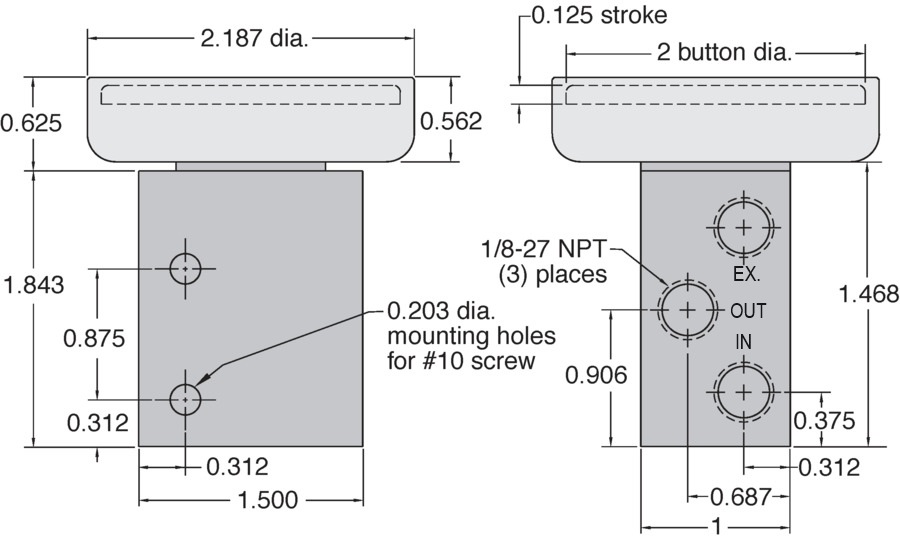

MountMounting holes provided; optional Bracket Kit (12959) provides additional mounting versatility.
NotesThe MAV-3C 3-Way Normally-Closed Poppet Valve is the replaceable cartridge valve available with anodized color buttons.
Operating Pressure100 psig max.
Ports1/8" NPT
Stem Travel1/8"
Stem Travel1/8"
Temperature Range32 to 230 F
Type/ForceStandard Force
Weight (lbs.)0.5700
Get CAD files:

Notes

The MAV-3C 3-Way Normally-Closed Poppet Valve is the replaceable cartridge valve available with anodized color buttons.
