MTV-3P

More Views

MTV-3P

These #10-32 ported 2-Way, 3-Way and 4-Way valves are manually-actuated with a toggle. The toggles are NP steel and have a detent action. The MTV-5 has threaded exhaust and can be connected in a dual inlet pressure configuration.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Poppet & spool styles
  • For high temperature applications (up to 400°F), or those that require special seals for chemical compatibility, Clippard offers optional FKM seals

    • Flow113 l/min @ 50 psig; 190 l/min @ 100 psig
    Force to Rotate Toggle16 oz. Nominal
    Function3-Way Normally-Closed
    Included Item(s)Nut & Lockwashers
    Input PSI150 psig max.
    Material, BodyBrass
    Material, SealsNitrile Std. FKM or Krytox optional
    Material, SpringStainless Steel Stem & Spring
    Material, ToggleNickel-Plated Steel
    Max PSI300 psig
    MediumAir, Water or Oil
    Mount#15/32-32 Thread
    Operating Temperature Range32 to 230°F (0 to 110°C)

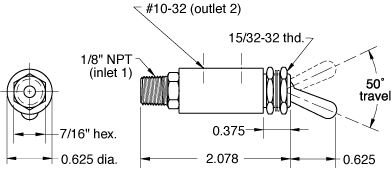

    Port, Inlet / Port, Outlet1/8" NPT / #10-32
    Product Line BrochureMechanical Valves
    StyleToggle
    UnitImperial
    Weight (lbs.)0.1700
