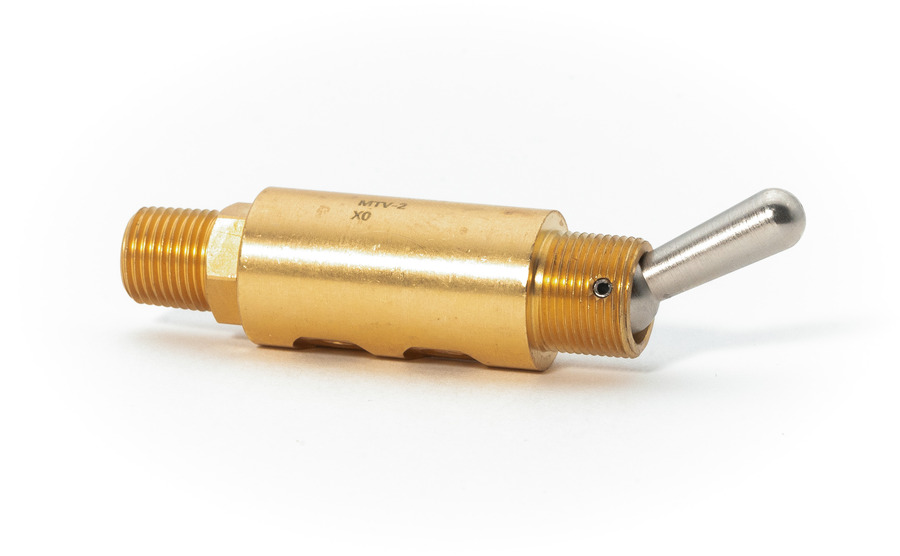

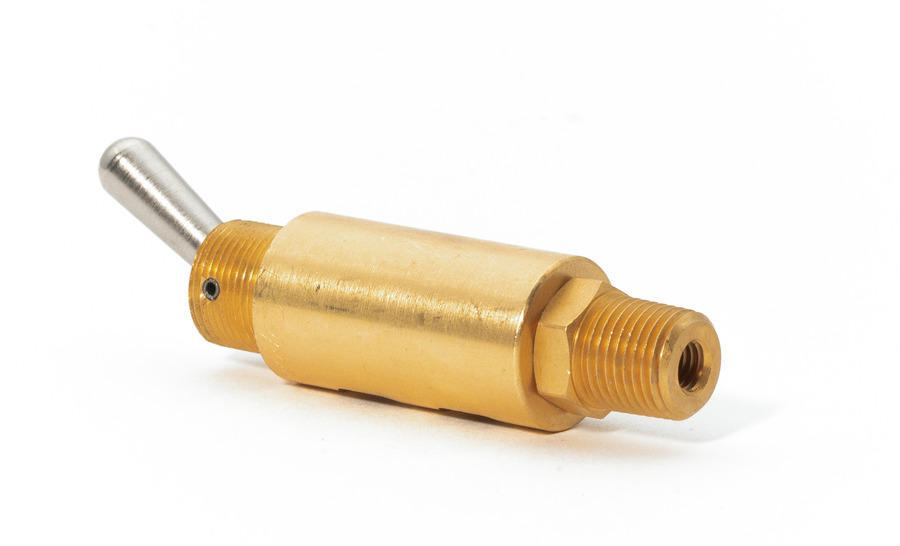

MTV-2P

These #10-32 ported 2-Way, 3-Way and 4-Way valves are manually-actuated with a toggle. The toggles are NP steel and have a detent action. The MTV-5 has threaded exhaust and can be connected in a dual inlet pressure configuration.

Unit

Function

Port, Inlet / Port, Outlet

Material, Toggle

Estimated to ship within 5 business days

Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.

Poppet & spool styles

For high temperature applications (up to 400°F), or those that require special seals for chemical compatibility, Clippard offers optional FKM seals

Flow	113 l/min @ 50 psig; 190 l/min @ 100 psig
Force to Rotate Toggle	12 oz. Nominal
Function	2-Way Normally-Closed
Included Item(s)	Nut & Lockwashers
Input PSI	150 psig max.
Material, Body	Brass
Material, Seals	Nitrile Std. FKM or Krytox optional
Material, Spring	Stainless Steel Stem & Spring
Material, Toggle	Nickel-Plated Steel
Max PSI	300 psig
Medium	Air, Water or Oil
Mount	#15/32-32 Thread
Operating Temperature Range	32 to 230°F (0 to 110°C)
Port, Inlet / Port, Outlet	1/8" NPT / #10-32
Product Line Brochure	Mechanical Valves
Style	Toggle
Unit	Imperial
Weight (lbs.)	0.1700
