MNV-4C

More Views

MNV-4C

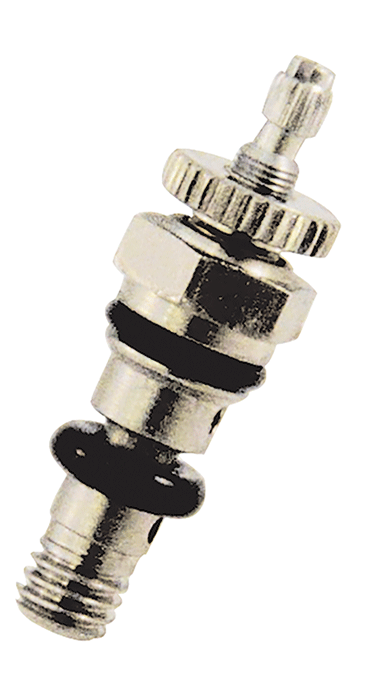

Adjustable control needle valves restrict flow in both directions. There are four models offered, all with #10-32 ports, but with various needle configurations to provide coarse or fine flow adjustment.
call for lead time
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Reach out to your local distributor for application support and specialized pricing.

  • Rugged and compact design
  • Direct, in-line or cartridge mount
  • Screwdriver slot adjustment or knurled knob
  • #10-32 or 1/8" NPT ports

    • AdjustmentScrewdriver
    Air Flow140 l/min @ 100 psig
    Included Item(s)Lockwashers
    Material, BodyBrass
    Material, NeedleStainless Steel
    Material, SealsNitrile
    Max PSI150 psig
    MediumAir, Water or Oil
    MountCartridge
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Product Line BrochureMechanical Valves
    Type (Inlet / Outlet )Cartridge Mount
    UnitImperial
    Weight (lbs.)0.0300
