MNV-2

More Views

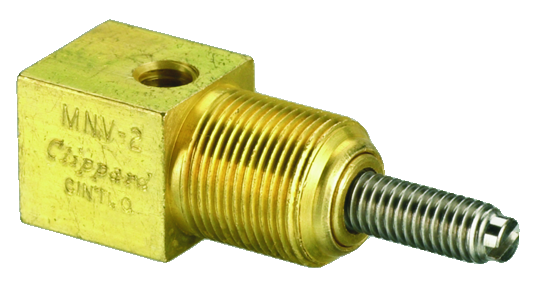

MNV-2

Adjustable control needle valves restrict flow in both directions. There are four models offered, all with #10-32 ports, but with various needle configurations to provide coarse or fine flow adjustment.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Rugged and compact design
  • Direct, in-line or cartridge mount
  • Screwdriver slot adjustment or knurled knob
  • #10-32 or 1/8" NPT ports

    • AdjustmentScrewdriver
    Air Flow28 l/min @ 50 psig; 71 l/min @ 100 psig
    Included Item(s)Lockwashers
    Input PSI300 psig max.
    Material, BodyBrass
    Material, NeedleStainless Steel
    Material, SealsNitrile
    Max PSI300 psig
    MediumAir, Water or Oil
    MountIn-Line (#15/32-32 thread)
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Product Line BrochureMechanical Valves
    Type (Inlet / Outlet )5° (#10-32 / #10-32) In-Line
    UnitImperial
    Weight (lbs.)0.0600
