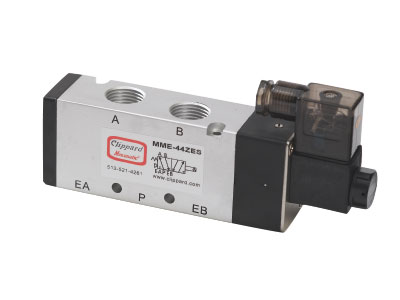

MME-42QES-D024

More Views

MME-42QES-D024

The Maximatic® Solenoid valves are available in 3-Way and 4-Way 2 Position configurations in port sizes from #10-32 to 1/2” NPT. They are available as body ported, manifold mount and actuator (1/4” NPT only) mounting. Standard models include a base that permits fast, secure mounting of electronic valves to a manifold for grouping in compact assemblies.
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Small size makes valves ideal for use in compact applications
  • All valves are IP 65 CE rated
  • Easily accessible locking or non-locking manual override switch
  • Sturdy aluminum body withstands rough environments
  • Conforms to ISO 19973-2 test standards

  • Actuation1 Elec. Pilot Spring Ret 2 Pos
    Air Flow1400 l/min @ 100 psig
    ConnectorDIN Connector
    Filtration (recommended)40 micron
    Manual OverrideLocking
    MediumAir or Inert Gas
    Operating Pressure20 to 125 psig
    Ports1/4" NPT
    Voltage24 VDC
    Wattage3 Watts
    Weight0.21
