MAR-1CP-6

More Views

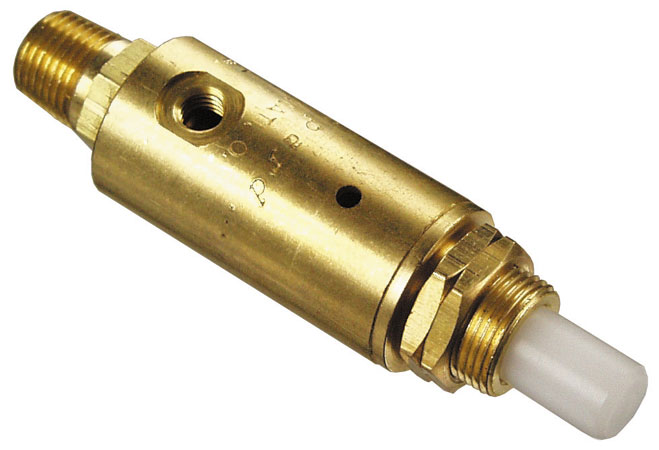

MAR-1CP-6

Pressure Regulator, 1/8” NPT Inlet, #10-32 Outlet, Plunger Actuated, 10-60 psig
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.
2D Files2D Files
AdjustmentPlunger Type
Data SheetData Sheet
Force25 lb. nominal
Included Item(s)Nuts & Lockwashers
Input Pressure300 psig max (21 bar)
Materal, BodyBrass
Material, SealsNitrile (FKM Optional)
Material, Spring & StemStainless Steel
Max. Flow85 l/min @ 50 psig; 140 l/min @ 100 psig
MediumAir, Water* or Oil* (* non-relieving models)
Mount#15/323-32 thread.
NotesOutlet pressure is based on 7/32" stem travel. If stem is depressed further, the outlet pressure will increase.
Operating Pressure10 to 60 psig
Operating Temperature Range32 to 230°F (0 to 110°C)
Ports (Inlet / Outlet)Std. - 1/8" NPT /#10-32
Relieving OptionRelieving (Standard)
Travel Arc7/32"
Weight0.1800
