Regulators are offered in either relieving or non-relieving versions. The relieving design maintains a constant pressure output even when downstream conditions change, while non-relieving regulators do not automatically compensate for changes in downstream flow or pressure. There is no vent to atmosphere, as in a relieving type regulator, and the output pressure can increase due to a downstream event. Non-relieving versions can accommodate compatible liquid applications.
| Special Configurations & Assemblies
These robust, durable regulators can be customized or combined with other components to meet your exact requirements. Contact us today to discuss your specific needs. |
 |
| 2D Files | 2D Files |
|---|---|
| Adjustment | Plunger Type |
| Air Flow | 85 l/min @ 50 psig; 140 l/min @ 100 psig |
| Force | 25 lb. Nominal |
| Included Item(s) | Nuts |
| Input PSI | 300 psig max. |
| Medium | Air |

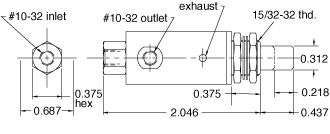

| Mount | #15/323-32 thread. Nuts and lockwashers furnished. |
| Operating Pressure | 10 to 100 psig |
| Operating Temperature Range | 32 to 230°F (0 to 110°C) |
| Ports (Inlet / Outlet) | Std. - #10-32 / #10-32 |
| Relieving Option | Relieving (Standard) |
| Stem Travel | 1/4 |
| Technical Data Sheet | Data Sheet |
| Travel Arc | 7/32" |
| Weight | 0.1800 |
Notes
Outlet pressure is based on 7/32" stem travel. If stem is depressed further, the outlet pressure will increase.
