MAN-12
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
More Views
Details

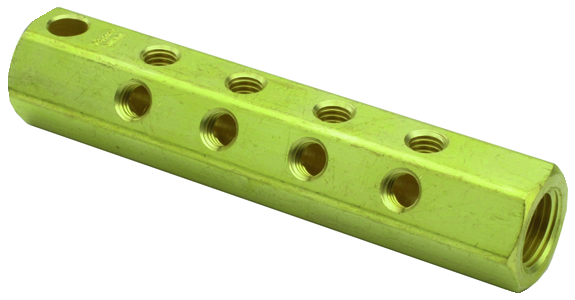

12-Port Manifold
Notes

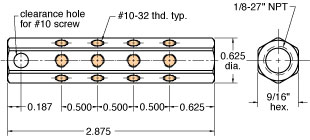

Tapped ports: 1/8" standard pipe tapped inlet. Brass.
See Catalog: Page 326
Uses
May be mounted on jigs, fixtures or machinery to provide up to 12 convenient 10-32 outlets from one standard 1/8" pipe connection. May be used with any Clippard 10-32 fittings, quick connects and many other devices. Unused ports can be plugged.
Additional Information
| Mount | 1 3/64" dia. Mounting Holes |
|---|---|
| Ports | 1/8" NPT |
| Weight | 0.2100 |
