M-MPA-10

More Views

M-MPA-10

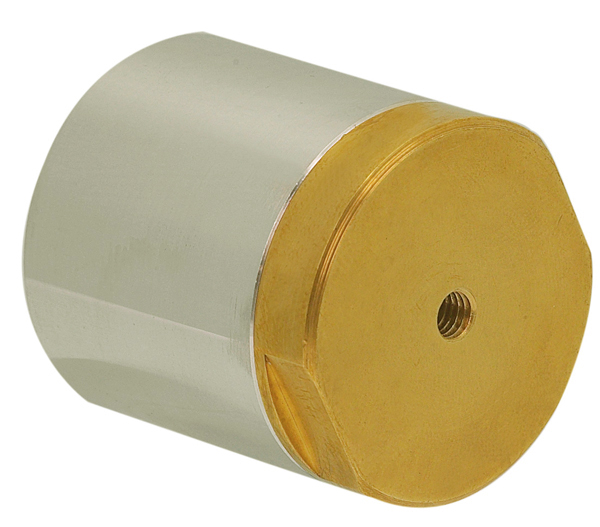

Air Pilot Valve Actuators thread onto the tops of Clippard miniature 2-Way, 3-Way, and 4-Way valves to provide fast pilot actuation from a pneumatic signal. They permit wide circuit flexibility and minimize cost, hazards and complexity by allowing many control functions to be accomplished pneumatically.
Estimated to ship within 20 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Reach out to your local distributor for application support and specialized pricing.

  • One of the most versatile items in the Clippard line
  • Compatible with all Clippard MAV/MAVO, MJV/MJVO & FV Series valves
  • Allow many control functions to be accomplished pneumatically

    • AccessoriesActuator Spacer 12098-PKG Pkg. of 10, 12098-BLK Bulk
    Bore Size1 1/4"
    Input PSI10 bar
    Length1.656
    Material, BodyBrass, Delrin Piston
    Material, SealsNitrile
    Material, SpringStainless Steel
    Max PSI10.3 bar
    MediumAir
    MountM12x0.75 Female Thread
    Port, Inlet#10-32
    UnitMetric
    Weight (lbs.)0.0700
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    Single-Acting Spring Return Pilot Actuator
