M-MNV-1

More Views

M-MNV-1

Adjustable control needle valves restrict flow in both directions. There are four models offered, all with #10-32 ports, but with various needle configurations to provide coarse or fine flow adjustment.
Estimated to ship within 20 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Rugged and compact design
  • Direct, in-line or cartridge mount
  • Screwdriver slot adjustment or knurled knob
  • #10-32 or 1/8" NPT ports

    • AdjustmentScrewdriver
    Included Item(s)Lockwashers
    Input PSI2,000 psig max.
    Material, BodyBrass
    Material, NeedleStainless Steel
    Material, SealsNitrile
    MediumAir, Water or Oil
    MountDirect (#15/32-32 thread)
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Product Line BrochureMechanical Valves

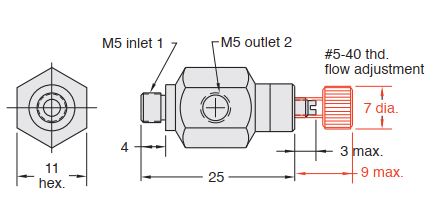

    Type (Inlet / Outlet )15° (M5 / M5)
    UnitMetric
    Weight (lbs.)0.0500
