M-MJTV-5

These #10-32 ported 2-Way, 3-Way and 4-Way valves are manually-actuated with a toggle. The toggles are NP steel and have a detent action. The MTV-5 has threaded exhaust and can be connected in a dual inlet pressure configuration.

Unit

Function

Port, Inlet / Port, Outlet

Material, Toggle

Estimated to ship within 20 business days

Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.

Poppet & spool styles

For high temperature applications (up to 400°F), or those that require special seals for chemical compatibility, Clippard offers optional FKM seals

Flow	170 l/min @ 3.4 bar; 280 l/min @ 7 bar
Force to Rotate Toggle	16 oz. Nominal
Function	4-Way Fully-Ported
Included Item(s)	Nut & Lockwashers
Input PSI	300 psig max.
Material, Body	Brass
Material, Seals	Nitrile Std. FKM or Krytox optional
Material, Spring	Stainless Steel Stem & Spring
Material, Toggle	Nickel-Plated Steel
Max PSI	10.3 bar
Medium	Air, Water or Oil

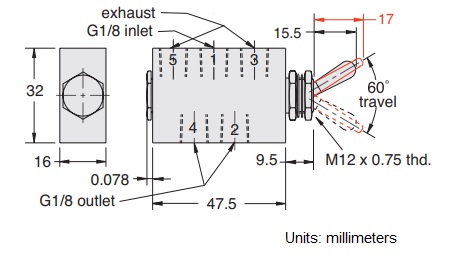

Mount	M12 x 0.75 thread.
Operating Temperature Range	32 to 230°F (0 to 110°C)
Port, Inlet / Port, Outlet	G1/8 / G/18
Product Line Brochure	Mechanical Valves
Style	Toggle
Unit	Metric
Weight (lbs.)	0.4200
