M-FO-003-M

More Views

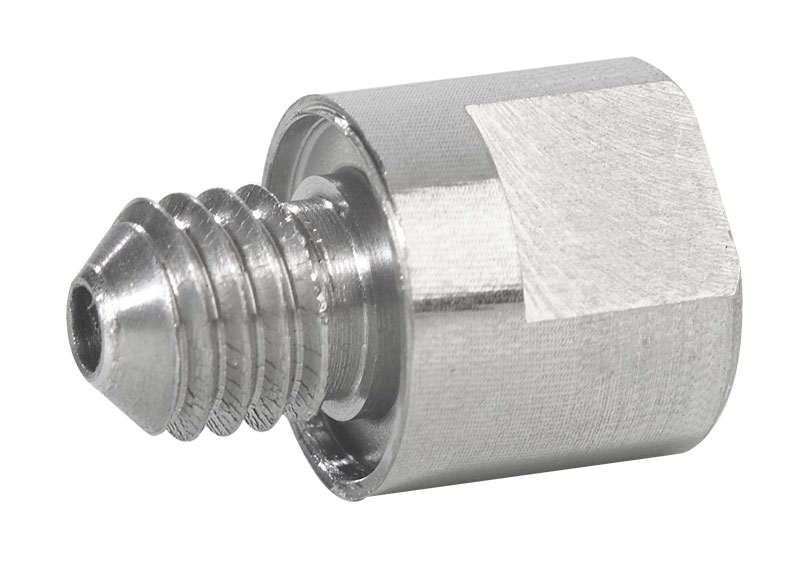

M-FO-003-M

With tolerances of ±0.0001" (0.0025 mm), Clippard's precision orifice fittings are engineered for applications where minute flow adjustments are critical. Whether optimizing fuel injection in aerospace applications or fine-tuning fluid dynamics in industrial processes, or ensuring precise dosages in medical, analytical, and life science applications, these meticulously manufactured orifice fittings enable you to achieve the ultra-precise flow control your systems demand.

Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.


Applications:

  • Precision flow control of gases or liquids
  • Fuel injection systems
  • Dynamic industrial fluid processes
  • Pneumatic or hydraulic circuits requiring accurate timing
  • Precision dosing for medical, analytical, and life science
  • Ultra high pressure waterjet
  • Liquid and gas control units
  • Flow meters
  • Inkjet printing

    • Data SheetData Sheet (includes 2D drawings)
    Filtration5 micron (recommended)
    Included ItemsCaptivated O-Ring
    Length0.487"
    Material, JewelSapphire
    Material, WettedStainless Steel, FKM and Ruby or Saphire
    Max PSI300 psig
    MediumAir, Liquid & Compatible Gases
    Mount#10-32 (M5) Female In/Male Out
    Operating Temperature Range-20 to 400°F (-29 to 204°C)
    Orifice0.003" (0.08 mm)
    Product Line BrochureSpider Technology
    ThreadM5
    Tolerance±0.0001" (0.0025 mm)
    UnitMetric
