JSV-2WFF

More Views

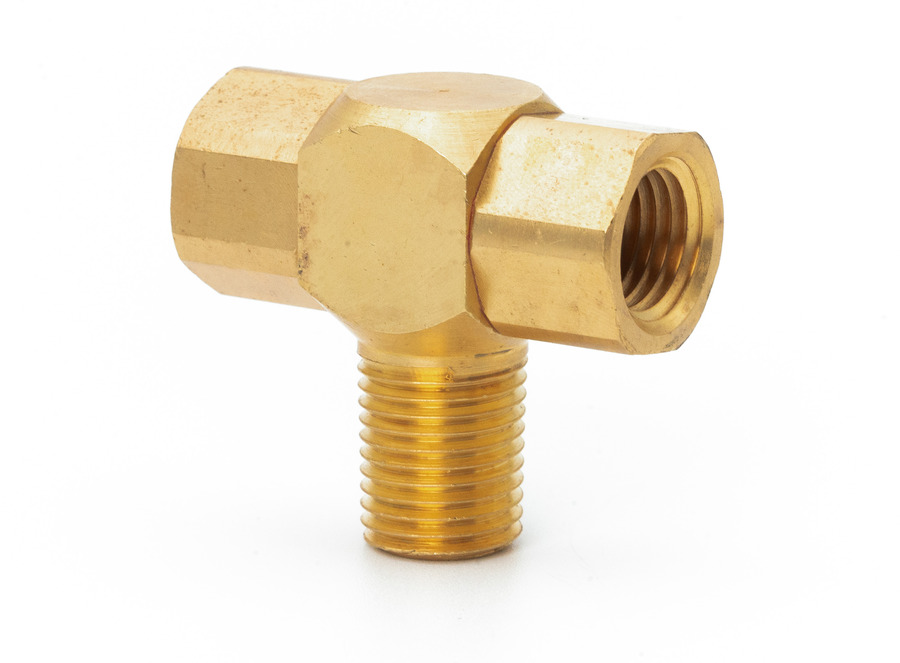

JSV-2WFF

Shuttle valves feature a shuttle that allows flow from one inlet to the outlet while blocking the other inlet. They may be mounted directly to valves or in-line using the hose barbs.
Estimated to ship within 1 to 2 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Poppet type (double check) valves
  • Brass body
  • Direct or in-line mount
  • Shuttle valves should not be used as a pressure selector

    • Length1.469
    MaterialBrass Body, Stainless Steel Shuttle
    Material, SealsNitrile
    Max. Flow30 scfm @ 50 psig; 50 psig @ 100 psig
    MediumAir, Water or Oil
    MountDirect or In-Line
    NoteShuttle valves should not be used as a pressure selector
    Operating Pressure300 psig max.
    Ports (Inlet A / Inlet B / Outlet C)1/8" NPT Fem A&B/ 1/4NPT MaleC
    Pressure to Shift1 psig approx.
    Product Line BrochureMechanical Valves
    Weight (lbs.)0.2500
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    Shuttle valves should not be used as a pressure selector
