JSLV-3-F4F4

More Views

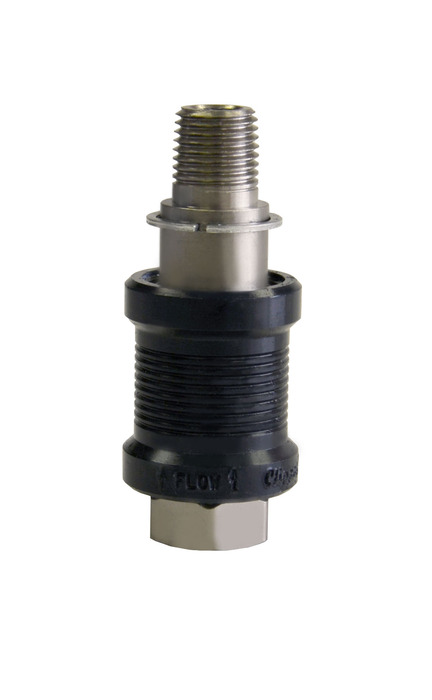

JSLV-3-F4F4

The J-Series sleeve valves with 1/8" NPT and 1/4" NPT ports offer large flow capability with a relatively short stroke in 2-Way and 3-Way valves, and no cross-over between inlet and exhaust on the 3-Way models.

The JSLV-2 2-Way valve and the JSLV-3 3-Way valve combine high flow with small size. Unlike ball valves, sleeve valves require no space for a handle. They also provide flexibility in pipe connections and are available with either male or female threads or combinations of both.

The JSLV-2 and JSLV-3 valves feature a smooth opening stroke during which inlet air is directed to the outlet. During the closing stroke, in the opposite direction of travel, the outlet is closed from the inlet and in the JSLV-3 version, the outlet is then exhausted to atmosphere without the inlet ever being connected to exhaust.

Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Variety of inlet and outlet porting eliminates fittings
  • No cross-over between inlet and exhaust ports
  • Corrosion-resistant electroless nickel plated brass body
  • Anodized aluminum sleeve for corrosion resistance
  • Smooth operation, low sliding friction
  • Nitrile seals (FKM available)

  • ForceApprox. 8 lbs.
    Function3-Way
    Material, BodyElectroless Nickel-Plated Brass Body; Anodized Aluminum Sleeve
    Material, SealsNitrile Std., FKM Available
    MediumAir, Water or Oil
    MountIn-Line or Direct to Fitting
    Operating Pressure150 psig (10 bar)
    Ports Inlet / Outlet1/4" NPT Female / Female
    Weight0.3000
