JLEV-F2M2-N

More Views

JLEV-F2M2-N

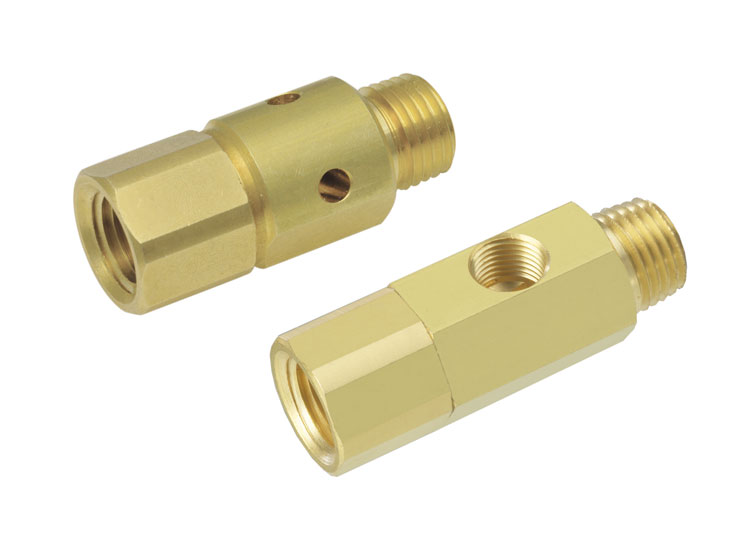

J-Series Exhaust Valves offer a variety of design features and provide fast response times and high flow with 1/8” and 1/4” NPT ports. This compact poppet type valve is constructed of brass and is 100% tested to assure the highest quality.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Enables use of smaller control valves
  • 15 to 150 psig maximum
  • Male outlet offers direct connection to cylinder
  • Up to 1,600 l/min @ 100 psig
  • Low shift ratio
  • Over 32 standard configurations
  • Custom configurations also available
  • Brass construction with molded Nitrile seal

    • Input PSI15 to 150 psig max.
    Material, BodyBrass Body, Nitrile Poppet
    Material, SealsNitrile
    Max. Flow1000 l/min @ 50 psig; 1600 l/min @ 100 pisg
    MediumAir
    MountIn-Line
    Operating Pressure15 to 150 psig (1 to 10 bar) max.
    Port, ExhaustUnthreaded
    Port, Inlet1/8" NPT Female
    Port, Outlet1/8" NPT Male
    Product Line BrochureMechanical Valves
    SealsNitrile
    UnitImperial
    Weight (lbs.)0.2500
