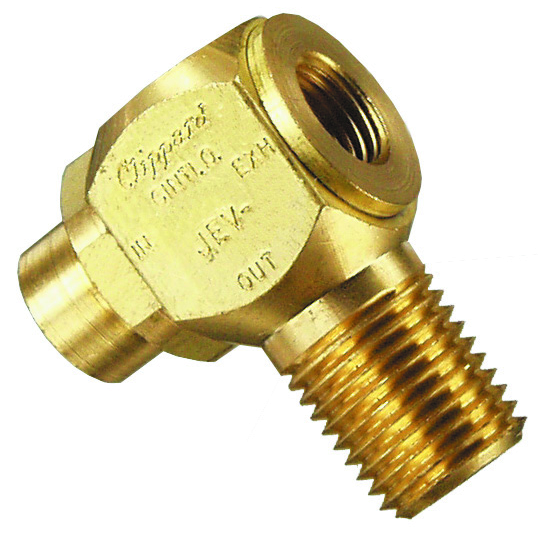

JEV-F2M4

J-Series Exhaust Valves offer a variety of design features and provide fast response times and high flow with 1/8” and 1/4” NPT ports. This compact poppet type valve is constructed of brass and is 100% tested to assure the highest quality.

Estimated to ship within 5 business days

Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.

Enables use of smaller control valves

15 to 150 psig maximum

Male outlet offers direct connection to cylinder

Up to 1,600 l/min @ 100 psig

Low shift ratio

Over 32 standard configurations

Custom configurations also available

Brass construction with molded Nitrile seal

Input PSI	15 to 150 psig max.
Length	1.468"
Material, Body	Brass Body, Nitrile Poppet
Material, Seals	Nitrile
Max. Flow	1,000 l/min @ 50 psig (3.4 bar); 1,600 l/min @ 100 psig (7 bar)
Medium	Air
Mount	90°
Operating Pressure	15 to 150 psig (1 to 10 bar) max.
Port, Exhaust	1/8" NPT Female/Holes
Port, Inlet	1/8" NPT Female
Port, Outlet	1/4" NPT Male
Product Line Brochure	Mechanical Valves
Seals	Nitrile
Unit	Imperial
Weight (lbs.)	0.2500
