GNV-5RI

More Views

GNV-5RI

Needle Valves are used to control the rate of flow in a pneumatic system by controlling flow in both directions. Material enters the input port, travels through an adjustable orifice and out the output port.
Estimated to ship within 10 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Provides bidirectional flow control
  • Rugged & compact design
  • Multiple mounting options
  • 360˚ rotating ports
  • Ideal for use with push-quick fittings

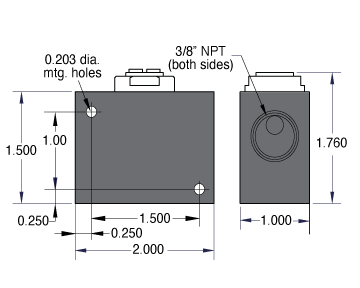

    • 2D File2D File
    AdjustmentScrewdriver Slot
    Air Flow1700 l/min @ 100 psig
    Input PSI300 psig (21 bar) max.
    MaterialElectroless Nickel Plated Brass Needle & Body, Anodized Aluminum Housing
    Material, SealsNitrile
    MediumAir, Water or Oil
    Mount (Threads )In-Line (3/8" NPT Both Sides)
    NotesRotating input allows 360° positioning. Ideal for use with Clippard Push-Quick Fittings.
    Product Line BrochureMechanical Valves
    Technical Data SheetData Sheet
    Weight (lbs.)0.2500
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    Rotating input allows 360° positioning. Ideal for use with Clippard Push-Quick Fittings.
