GNV-3R

More Views

GNV-3R

Needle Valves are used to control the rate of flow in a pneumatic system by controlling flow in both directions. Material enters the input port, travels through an adjustable orifice and out the output port.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Provides bidirectional flow control
  • Rugged & compact design
  • Multiple mounting options
  • 360˚ rotating ports
  • Ideal for use with push-quick fittings

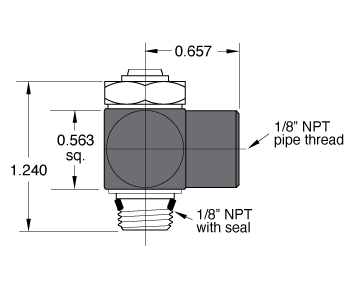

    • 2D File2D File
    AdjustmentScrewdriver Slot
    Air Flow310 l/min @ 100 psig
    Input PSI300 psig (21 bar) max.
    MaterialElectroless Nickel Plated Brass Needle & Body, Anodized Aluminum Housing
    Material, SealsNitrile
    MediumAir, Water or Oil
    Mount (Threads )Direct (1/8" NPT)
    NotesGNV-3 Series features a stainless steel needle.
    Product Line BrochureMechanical Valves
    Technical Data SheetData Sheet
    Weight (lbs.)0.2500
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    GNV-3 Series features a stainless steel needle.
