GNV-3KC

More Views

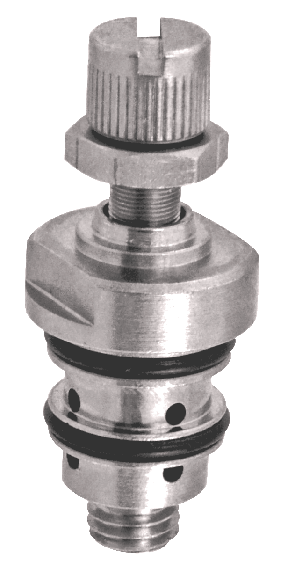

GNV-3KC

Needle Valves are used to control the rate of flow in a pneumatic system by controlling flow in both directions. Material enters the input port, travels through an adjustable orifice and out the output port.
Estimated to ship within 20 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Provides bidirectional flow control
  • Rugged & compact design
  • Multiple mounting options
  • 360˚ rotating ports
  • Ideal for use with push-quick fittings

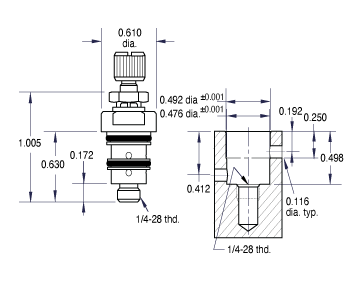

    • 2D File2D File
    AdjustmentKnurled Knob
    Air Flow310 l/min @ 100 psig
    Input PSI300 psig (21 bar) max.
    MaterialElectroless Nickel Plated Brass Needle & Body, Anodized Aluminum Housing
    Material, SealsNitrile
    MediumAir, Water or Oil
    Mount (Threads )Cartridge (Flow 3)
    NotesGNV-3 Series features a stainless steel needle.
    Product Line BrochureMechanical Valves
    Technical Data SheetData Sheet
    Weight (lbs.)0.2500
    Get CAD files:

    Notes

    GNV-3 Series features a stainless steel needle.
