CM-011

   Product will ship within 1 to 2 business days
CM-011

More Views

Details

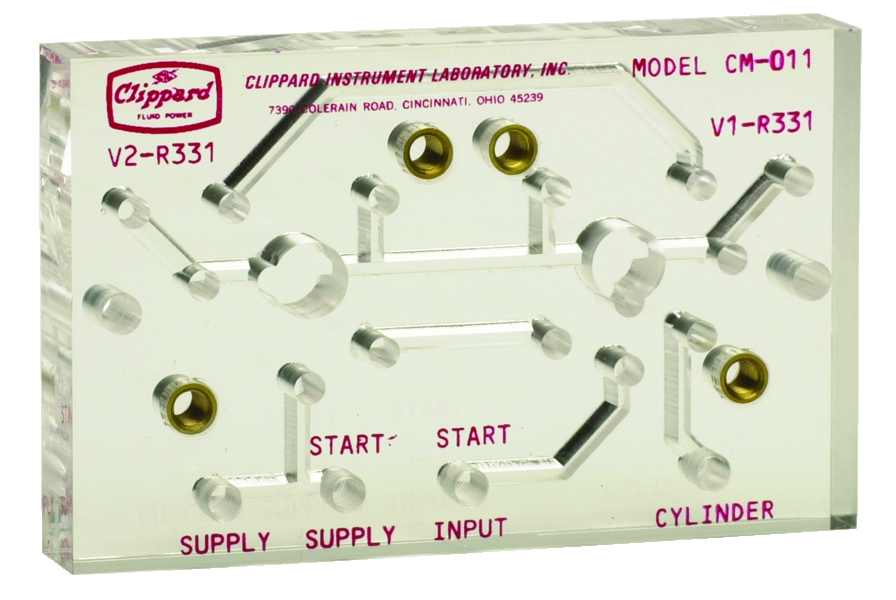

Pneumatic Oscillator

Notes

Clippard valves must be ordered separately.
See Catalog: Page 243

Uses

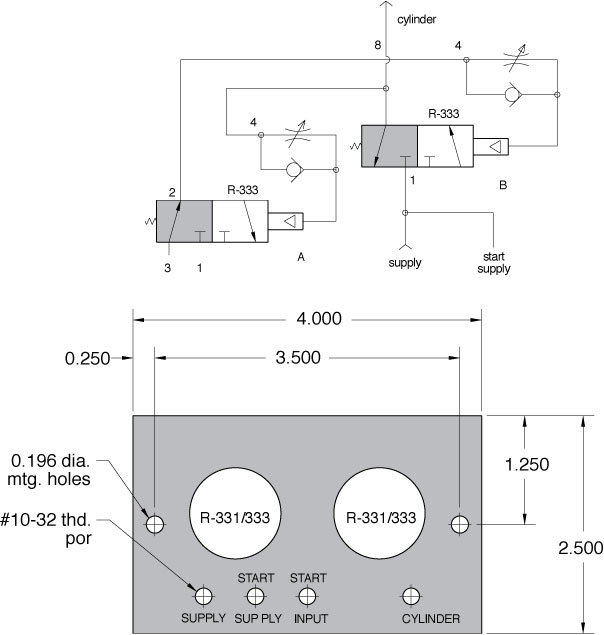

Provides mounting for two R-331 or R-333 modular valves. Circuit provides for automatic cycling of the two modular valves. The needle valve adjustments in the modular valves allow for controlled on/off delay signal providing variable cycle speed.

Additional Information

Length4.00
Max PSI120 PSIG
Temperature Range30 to 180°F
Weight0.2300
