CFC-CFR-ACC

More Views

CFC-CFR-ACC

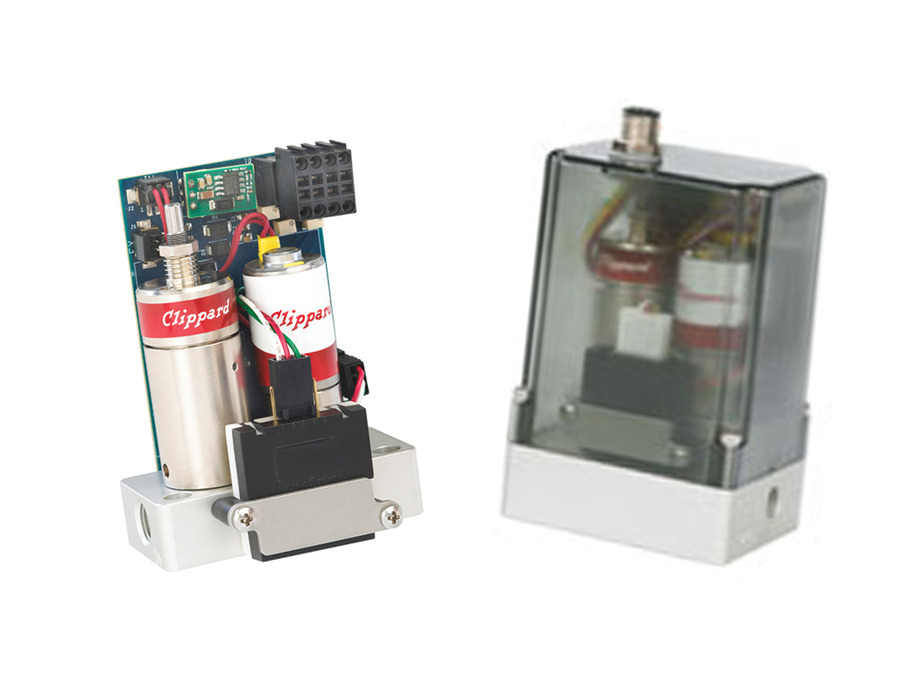

The Cordis Flow Controller utilizes an extremely fast-reacting MEMS technology sensor upstream from Clippard's proportional valve. Unlike other mass flow controllers, the Cordis flow controller requires less than one minute warm-up, features a pressure drop ≤14" H2O, and includes flow ranges as low as 0 to 30 sccm. Standard control options include 0.2 to 10 VDC, 4.32 to 20 mA, and 3.3 VDC Serial. IP65 housing available for light industrial applications.
Estimated to ship within 10 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • 50:1 turndown ratio
  • Compact size and weight
  • ≤14" H2O pressure drop
  • <1 minute warm-up
  • Multiple low flow ranges
  • <50 ms response time
  • ≤25 mV resolution
  • Optional integrated regulator

    • **NotePlease consult factory for current pricing
    2D File2D File
    Accessories3.3 VDC Serial Cable: CPCH-C2, Power Cord, 6': CPCH-CA6, Actuation Cable, 8-Pin, 6': CPCH-C1
    Accuracy≤2% of Full Scale
    ApplicationsApplications Form
    Calibrated Flow Range0 to 0.5 l/min
    Current Draw≤250 mA max.
    Data SheetData Sheet
    Filtration40 micron (recommended)
    Flow RangeMinimum: 0 to 15 sccm, Maximum: 0 to 6 l/min
    FunctionNormally-Closed Proportional
    Hysteresis≤1%
    Linearity≤1%
    Material, ManifoldAnodized Aluminum
    Material, SensorPolyamide
    Max. Inlet60 psig (4 bar)
    MediumClean, Dry, Non-Corrosive Gases
    Mounting AttitudeAny
    Operating InstructionsOperating Instructions
    Operating Temperature RangeProportional Valve: 32° to 120°F (0 to 49°C)
    Porting1/8" NPT
    Pressure Drop≤14" H2O
    Product Line BrochureCordis Electronic Controls
    Regulated SupplyNo Regulator
    Repeatability≤1%
    Resolution≤25 mV
    Response Time<50 ms (application dependent)
    Signal/Command3.3 VDC Serial
    Supply Pressure21 to 30 psig
    Turndown Ratio50:1
    TypeCard Unit
    Voltage15 to 24 VDC
    Warm-Up Period<1 Minute
    Weight (lbs.)0.4000
