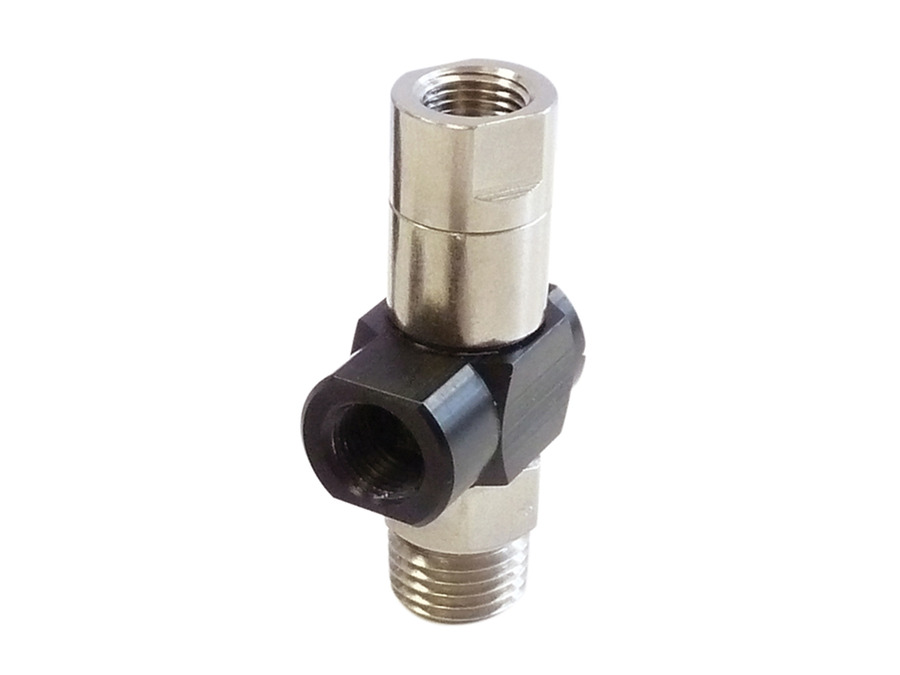

Pilot-Operated Check Valves

Configure JPC

Pilot-operated check valves work as standard check valves but can be opened with an air pilot signal to permit free flow in the normally "checked" direction. This provides the user with a reliable method to check flow in one direction with the ability to remotely signal a free flow through the valve. The JPC Series all-in-one pilot-operated check valves are easy to connect and ideal for any circuit that might benefit from this useful function.
(Please select a valid configuration)

  • High flow valve means low pressure drop
  • Uses Clippard's superior poppet design
  • #10-32 auxiliary port allows ease of plumbing
  • Side port rotates for ease of positioning
  • Pressure range up to 300 psig
  • Direct mount

  • Material, BodyENP Brass, Anodized Aluminum, Stainless Steel
    Material, SealsNitrile
    MediumAir, Water or Oil
    Operating PressureUp to 300 psig (21 bar)
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Technical Data SheetData Sheet
    Weight0.0800
