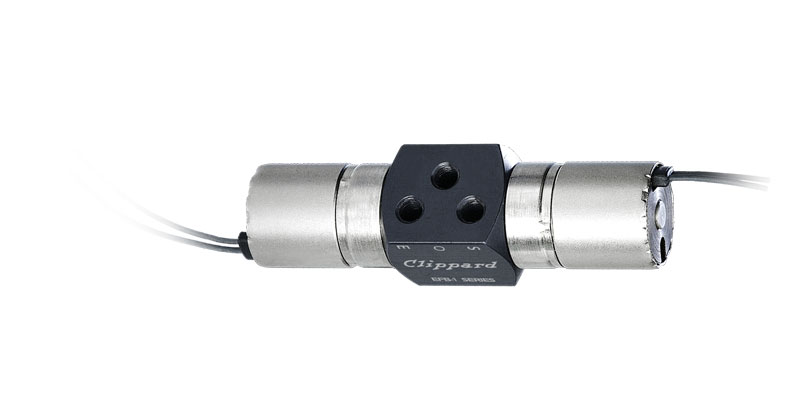

EFB Electronic Fill & Bleed Circuits

More Views

Configure EFB

The EFB series electronic fill and bleed circuits are a combination of Clippard pneumatic valve components used to inflate a volume or apparatus in one controllable function, and to release or vent pressure in a second controllable function. Fill and bleed circuits are commonly used in many applications where a particular pressure, firmness, or position can be controlled with the addition or venting of pressure.
(Please select a valid configuration)

  • Compact, robust design
  • Extremely fast response
  • Exceptionally long life
  • Multiple flow and pressure options
  • Variety of power and connection options
  • RoHS compliant

  • Clippard ValveEV-2M-(12/24)
    Material, BodyBlack Anodized Aluminum
    MediumClean, dry air and compatible gases
    NotesSee EFB-1M for In-Line Manifold Only, or EFB-2M for Manifold Mount Manifold Only.
    Voltage24 VDC


    See [[part:EFB-1M]] for In-Line Manifold Only, or [[part:EFB-2M]] for Manifold Mount Manifold Only.
