MJSV-1

More Views

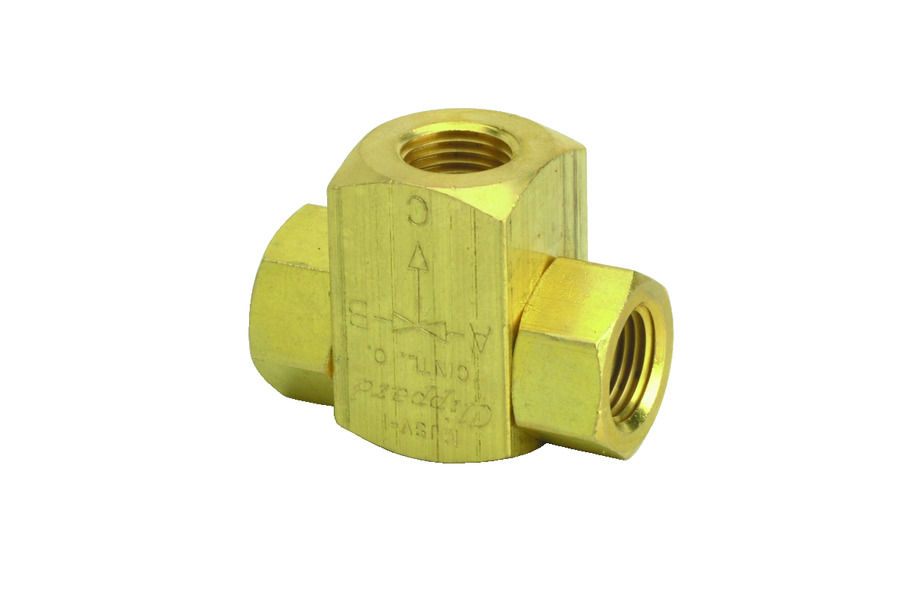

MJSV-1

Shuttle valves feature a shuttle that allows flow from one inlet to the outlet while blocking the other inlet. They may be mounted directly to valves or in-line using the hose barbs.
Estimated to ship within 2 to 3 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Poppet type (double check) valves
  • Brass body
  • Direct or in-line mount
  • Shuttle valves should not be used as a pressure selector

    • Input PSI300 psig - Air; 1,000 psig - Hudraulics
    MaterialBrass Body, Stainless Steel Shuttle
    Material, SealsNitrile
    Max PSI300air/1000hyd
    Max. Flow400 l/min @ 50 psig; 740 l/min @ 100 psig
    MediumAir, Water or Oil
    MountDirect or In-Line
    NoteShuttle valves should not be used as a pressure selector. Flow from "A" to "C" or "B " to "C".
    Operating Pressure300 psig max.

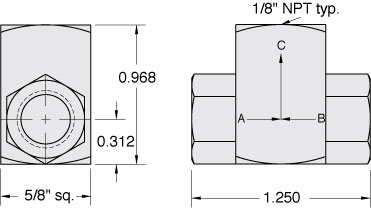

    Ports (Inlet A / Inlet B / Outlet C)1/8" NPT Fem A, B & C
    Pressure to Shift1 psig approx.
    Product Line BrochureMechanical Valves
    Weight (lbs.)0.2500
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    Shuttle valves should not be used as a pressure selector. Flow from "A" to "C" or "B " to "C".
