MJCV-1AA

More Views

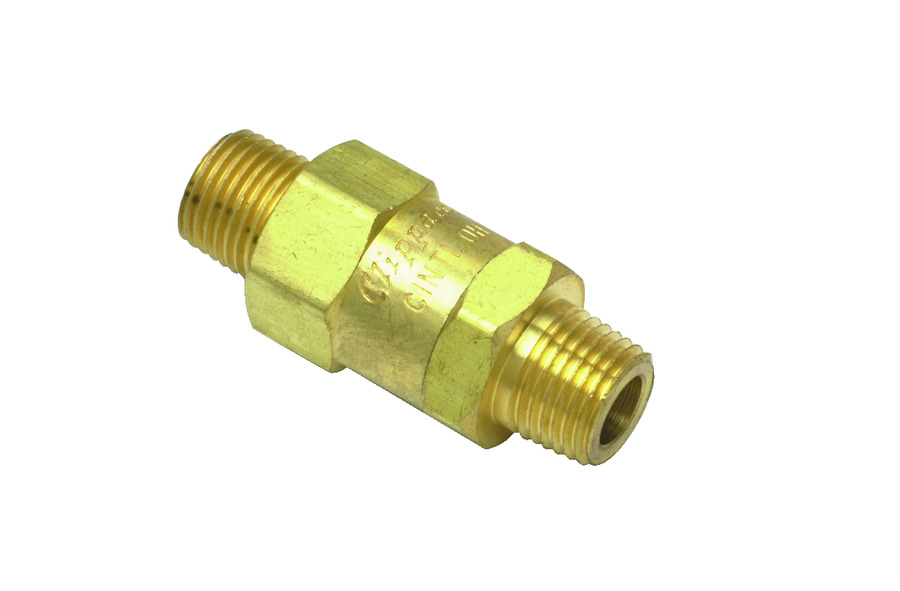

MJCV-1AA

Multiple varieties of check valves permit flow in one direction only. Valve bodies provide in-line mounting, nitrile seals and stainless steel springs. 1/8" NPT inlet and outlets. 30 psig input pressure.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Not intended for pressure relieve
  • 300 psig Input Pressure
  • Side port rotates for ease of positioning
  • Features a Zytel 80G33 poppet

    • Flow570 l/min @ 50 psig; 1000 l/min @ 100 psig
    Input PSI300 psig (1,000 psig hydraulic max.)
    Length1.437"
    Material, BodyBrass
    Material, SealsNitrile
    Material, SpringStainless Steel
    MediumAir
    MountDirect or In-Line
    NoteNot intended for pressure relief. Arrow on valve body indicates direction of flow.
    Operating Pressure1,000 psig (69 bar) max.
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Ports (Inlet - Outlet)1/8" NPT (Male-to-Male)
    Pressure to ShiftCracks @ approx. 1/2 psig
    Product Line BrochureMechanical Valves
    UnitImperial
    Weight (lbs.)0.1100
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    Not intended for pressure relief. Arrow on valve body indicates direction of flow.
