M-MJCV-1

More Views

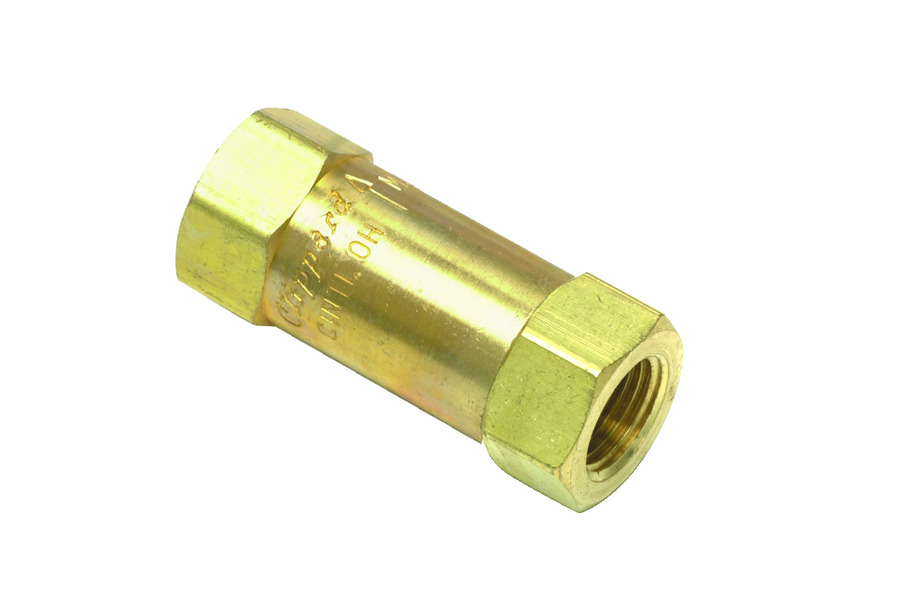

M-MJCV-1

Multiple varieties of check valves permit flow in one direction only. Valve bodies provide in-line mounting, nitrile seals and stainless steel springs. 1/8" NPT inlet and outlets. 30 psig input pressure.
Estimated to ship within 20 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Not intended for pressure relieve
  • 300 psig Input Pressure
  • Side port rotates for ease of positioning
  • Features a Zytel 80G33 poppet

    • Flow580 l/min @ 6 bar
    Material, BodyBrass
    Material, SealsNitrile
    Material, SpringStainless Steel
    MediumAir
    MountDirect or In-Line
    Note580 l/min @ 6 bar
    Operating Pressure1,000 psig (69 bar) max.
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Ports (Inlet - Outlet)G1/8 (Female-to-Female)
    Pressure to ShiftCracks @ approx. 1/2 psig
    Product Line BrochureMechanical Valves
    UnitMetric
    Weight (lbs.)0.0300
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    580 l/min @ 6 bar
