M-MAV-3P

More Views

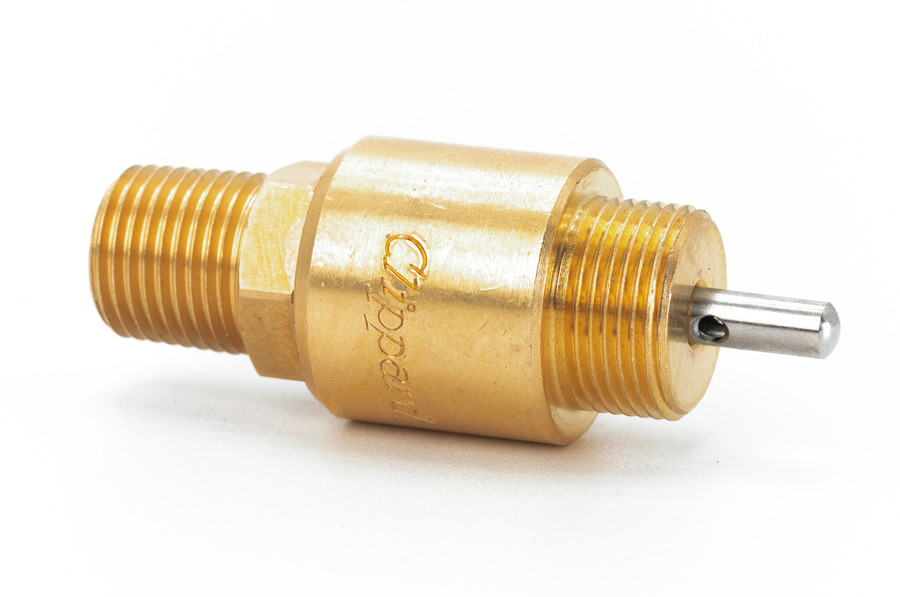

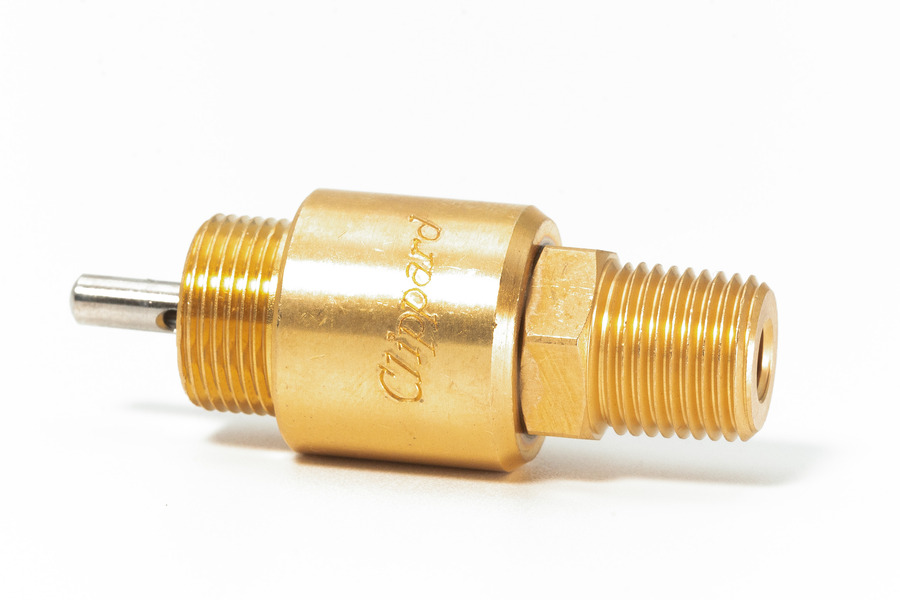

M-MAV-3P

The MAV series are #10-32 ported valves that change their flow path when the stem is depressed or released. The 2-Way and 3-Way valves are offered in both Normally-Closed (not passing) or Normally-Open (passing) versions.
Estimated to ship within 20 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Miniature #10-32 threaded ports
  • 2-Way, 3-Way & 4-Way valves
  • Miniature size with high flow poppet or spool designs
  • Exceptionally low leakage rate on poppet design
  • Rotatable inlet available

    • 2D File2D File
    Air Flow110 l/min @ 3.4 bar; 190 l/min @ 7 bar
    Function3-Way
    Included Item(s)Nut & Lockwashers
    Material, BodyBrass, ENP Available
    Material, SealsNitrile Std., FKM & Krytox Optional
    Material, Spring & StemStainless Steel
    MediumAir, Water or Oil
    Mount#15-32 Thread. Cartridge insets into 0.375" ±0.001" bore.
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Port, InletG1/8
    Port, OutletM5
    PortingNormally-Closed
    Product Line BrochureMechanical Valves
    Stem Travel1/8"
    StyleStem
    UnitMetric
    Weight (lbs.)0.1000
