M-MAV-2P

More Views

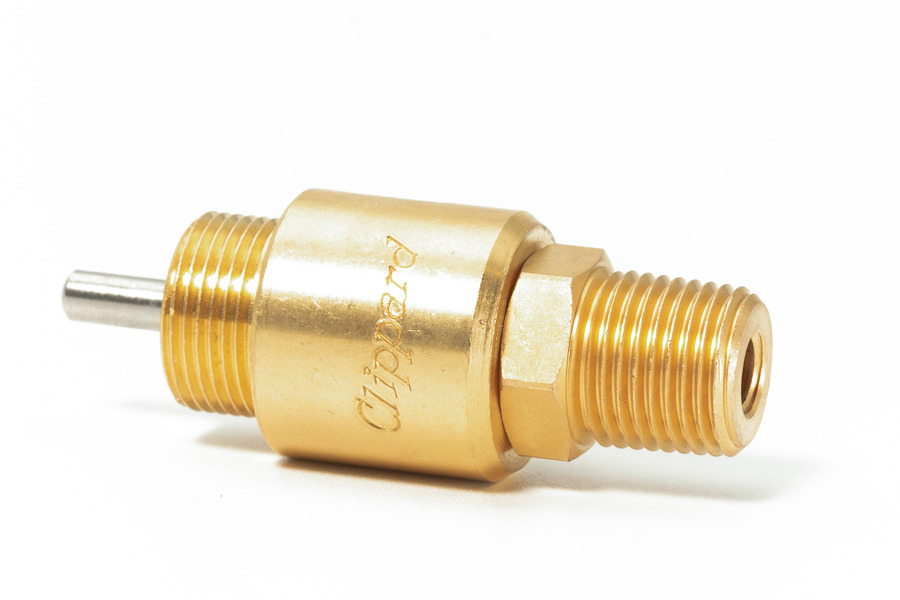

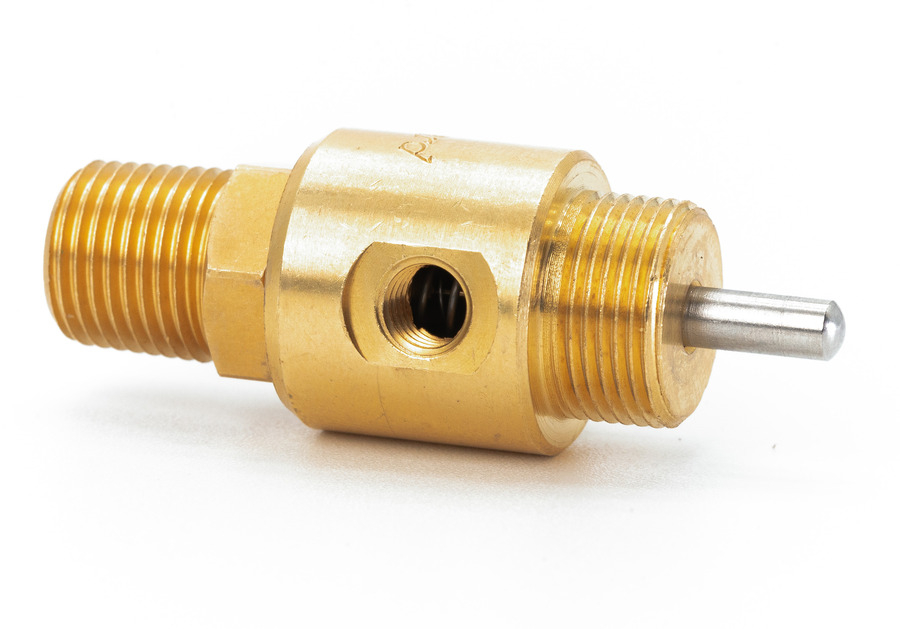

M-MAV-2P

The MAV series are #10-32 ported valves that change their flow path when the stem is depressed or released. The 2-Way and 3-Way valves are offered in both Normally-Closed (not passing) or Normally-Open (passing) versions.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Miniature #10-32 threaded ports
  • 2-Way, 3-Way & 4-Way valves
  • Miniature size with high flow poppet or spool designs
  • Exceptionally low leakage rate on poppet design
  • Rotatable inlet available

    • Function2-Way
    Included Item(s)Nut & Lockwashers
    Material, BodyBrass, ENP Available
    Material, SealsNitrile Std., FKM & Krytox Optional
    Material, Spring & StemStainless Steel
    MediumAir, Water or Oil
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Port, InletG1/8
    Port, OutletM5
    PortingNormally-Closed
    StyleStem
    UnitMetric
    Weight0.0300
