M-GV-3C

More Views

M-GV-3C

The MJV/MJVO series are high flow 1/8" NPT ported 2-Way, 3-Way and 4-Way valves that change their flow path when the stem is either depressed or released (spring return). The 2-Way and 3-Way valves are offered in both Normally-Closed and Normally-Open versions.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • High flow poppet or spool design
  • MJV- are Normally-Closed (no flow when not actuated)
  • MJVO- are Normally-Open (flow until actuated)

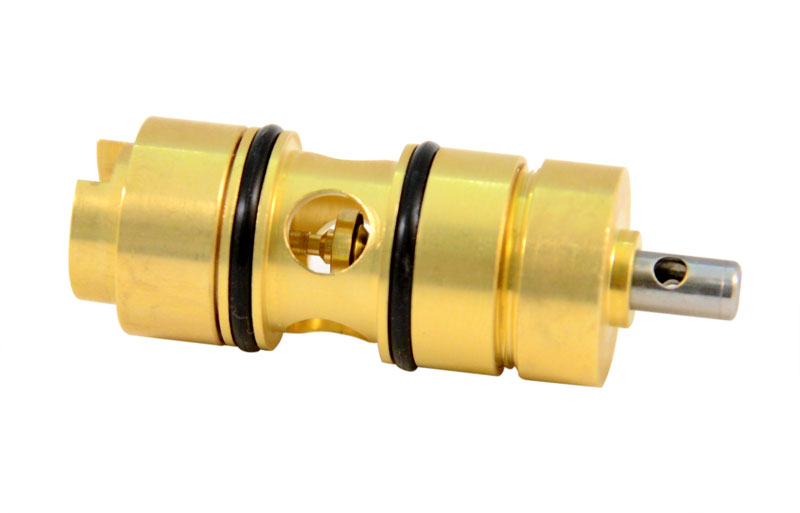

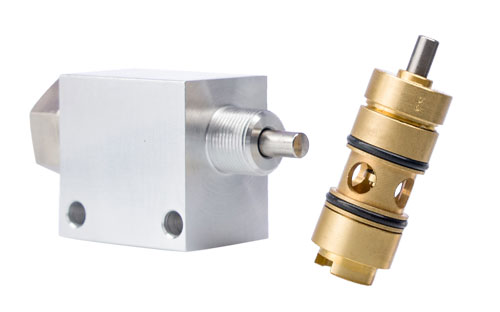

  • Cartridge valves are designed to be installed in a custom bore

    • Function3-Way
    Included Item(s)Nut & Lockwashers
    Material, BodyBrass, ENP Optional
    Material, SealsNitrile, FKM Optional
    Material, Spring & StemStainless Steel
    MediumAir, Water, Oil or Compatible Fluids
    MountCartridge
    Operating Temperature Range32 to 230°F (0 to 110°C)
    PortingNormally-Closed
    PortsG1/4
    Product Line BrochureMechanical Valves
    Stem OptionStandard
    Stem Travel3/16"
    StyleStem
    UnitMetric
    Weight (lbs.)0.2000
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    Stem Travel: 1/8"
