JFC-3BRP08

Sorry, this part is not available online.
Contact your nearest distributor for pricing.
JFC-3BRP08

More Views

Get CAD files:

Details

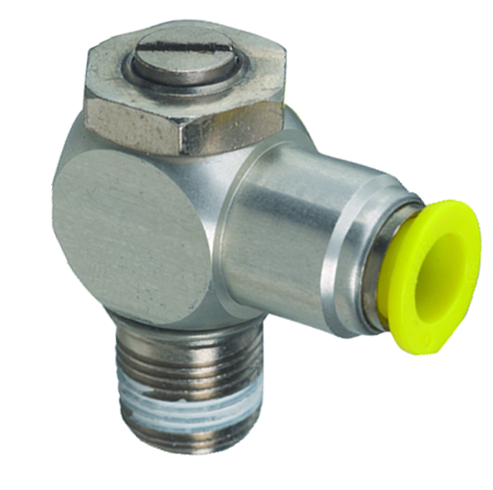

OBSOLETE-Meter In Adjustable Flow Control Valve, 1/4" PQ

Notes

Arrow in body shows direction of controlled flow
See Catalog: Page 158

Additional Information

Air Flow310 l/min @ 100 psig (adjustable)
Input PSI150 psig max.
MediumAir, Water or Oil
MountPanel or In-Line
SealsNitrile
Temperature Range32 to 230°F
Thread1/8" NPT
