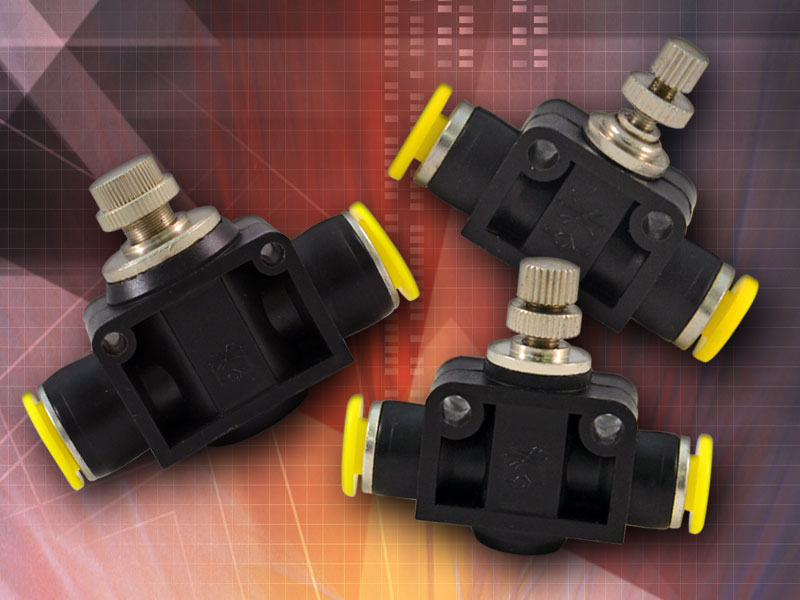

Clippard Push-Quick In-Line Flow Control Valves

Clippard PQ Flow Control Series

Clippard's PQ-FV In-line Push-Quick In-Line Flow Controls can easily be added to existing circuitry and are light weight and compact in size. Since it is a tube-to-tube connection, in-line flow controls may be installed as a meter-in or meter-out device.

In the meter-out versions, intake air flows freely through the flow control; exhaust air is metered out through an adjustment screw. With the meter-in series, air is metered in through an adjustment screw; exhaust air flows freely. Control is varied through a finely threaded adjustment screw. A locking nut is provided so it can be secured in its final setting.

Locate a DistributorLocate a Distributor
Order OnlineView Ordering Information




Push-Quick In-Line Flow Control Valves

Features
•  Small, compact size, light-weight
•  Design flexibility and fast response
•  Complete rotation of the valve body around the bolt
   allows for optimum positioning
•  Special adjustment needle design allows large
   adjustment ranges with high precision
