HV-4C

Cartridge valves are used to connect to air passages in manifolds or other valve circuit systems, thereby eliminating the need for external plumbing. Saves space and reduces the possibility of leaks.

Function

Type

Max. Flow @ 100 psig

Estimated to ship within 20 business days

Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.

2-Way, 3-Way & 4-Way

Normally-Open & Normally-Closed

Function	4-Way
Included Items	Nuts & Lockwashers
Input PSI	150 psig
Material, Body	Brass
Material, Seals	Nitrile
Material, Spring	Stainless Steel
Material, Stem	Stainless Steel
Max. Flow @ 100 psig	310 l/min (11 scfm)
Medium	Air

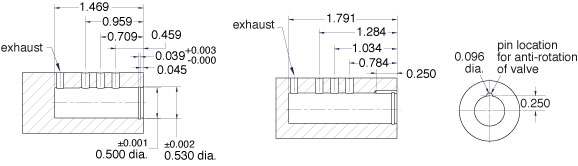

Mount	Inserts into a 1/2" bore
Operating Temperature Range	32 to 230°F
Product Line Brochure	Mechanical Valves
Type	Normally-Closed
Weight (lbs.)	0.1800
