7SS-1

More Views

7SS-1

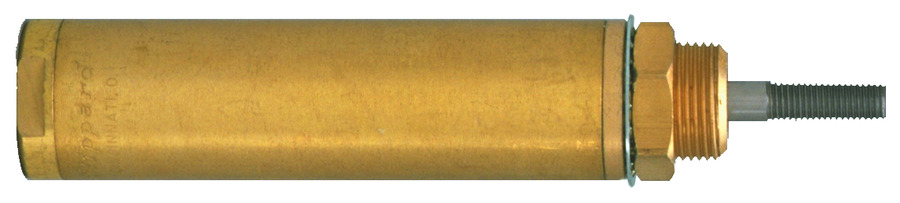

7/8” Heavy Duty, Stud Mnt, Single Acting, Spring Return, 1"
Clippard has divested our cylinder product lines to Compact Automation. Click here to learn more.

To continue ordering the same cylinders you have ordered in the past, please click here to locate your nearest Clippard distributor.
ActionSpring Return, Air Extend
Bore0.875
Max PSI250 psig
MediumAir
MountStud Mount
Power Factor0.6
RodRotating Rod
Rod Diameter0.25
Stroke1.0000
Temperature Range30 to 230°F
Weight0.6600

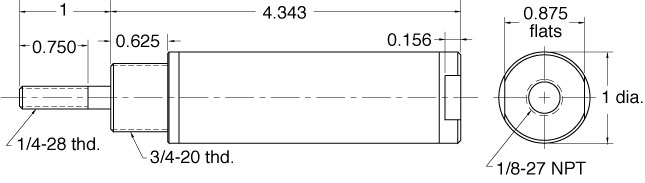

Get CAD files:
