7S-1

   Product will ship within 5 business days
7S-1

More Views

Details

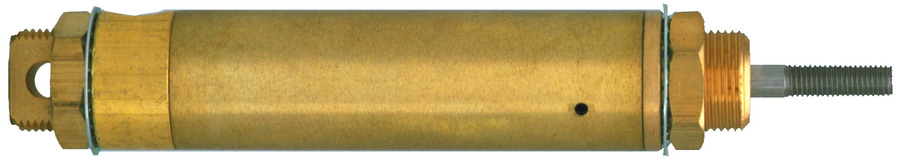

7/8” Heavy Duty, Universal Mount, Single Acting, Spring Return, 1”

Notes

Sintered Bronze Rod Bushing
See Catalog: Page 99

Additional Information

ActionSpring Return, Air Extend
Bore0.875
Max PSI250 psig
MediumAir
MountUniversal Mount
Ports1/8" NPT
Power Factor0.6
RodRotating Rod
Rod Diameter0.25
Spring Force (extended)12 lb
Spring Force (retracted)7 lb
Stroke1.0000
Temperature Range30 to 230°F
