Clippard Cartridge Valve Bore Drawing & Dimensions

Category:

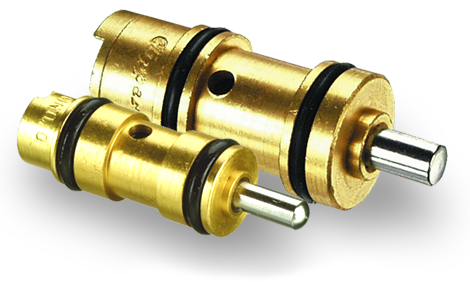

Clippard Miniature Cartridge Valves

Clippard miniature cartridge valves offer the user flexibility in the application of 2-way and 3-way Normally-Open or Normally-Closed valves.

Two sizes are provided to fit either a 0.375” diameter bore or 0.625” diameter bore.

They are used in Clippard heavy-duty limit switches and are suitable for pneumatic tools and manifolds or for any use where a valve needs to be built in.

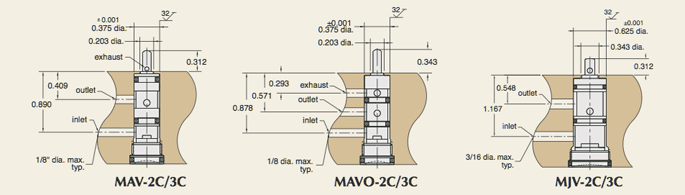

Clippard Cartridge Bore Details
