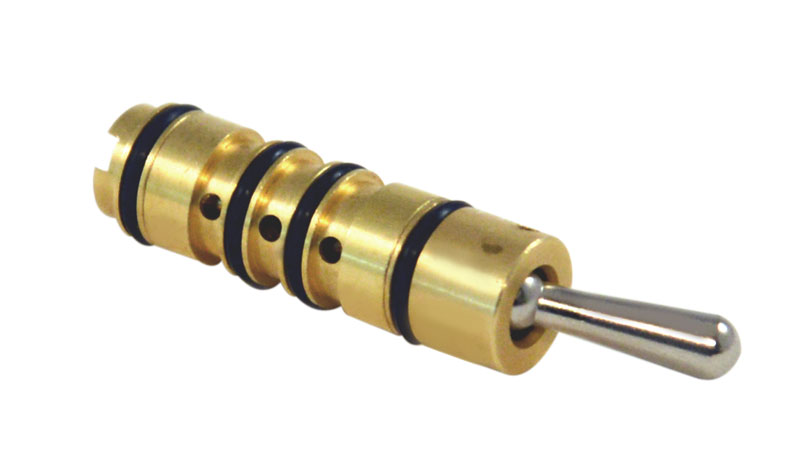

HTV-4C

Cartridge valves are used to connect to air passages in manifolds or other valve circuit systems, thereby eliminating the need for external plumbing. Saves space and reduces the possibility of leaks.

Estimated to ship within 5 business days

Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.

Normally-Open & Normally-Closed

2-Way & 3-Way

Poppet valves provide superior life

Spool valves provide superior versatility

Actuation	Toggle Cartridge
Function	4-Way 1/8" NPT
Input PSI	150 psig max.
Material, Body	Brass, Stainless Steel Stem & Spring
Material, Seals	Nitrile
Medium	Air
Mount	Inserts into a 1/2" bore
Product Line Brochure	Mechanical Valves
Seals	Nitrile Std., FKM & Krytox Optional
Weight (lbs.)	0.1800
